EST-FS2216WW+W-240-24-Y
By:
Additional information
$0.00
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks
Introducing the WW+W Tunable – EST-FS2216WW+W-240-24-Y tunable white LED strip—engineered for architectural excellence in smart, human-centric lighting applications. Designed to elevate residential and commercial interiors, this high-density LED strip offers seamless control over color temperature and illumination intensity, making it ideal for creative professionals, fit‑out projects, and bespoke lighting designs.
Featuring 3 oz copper flex PCBs and SMD2216 LED chips, the strip delivers consistent, high-CRI (≥90; optional ≥94) performance. It operates on 12–24 V DC and accommodates variable IP ratings—IP20 to IP68—ensuring versatility across interior and semi-exterior installations. With a color temperature range from ultra-warm 1800 K to crisp daylight 6500 K, designers can sculpt immersive environments through precise tunability.
With approximately 240 LEDs per meter and up to 14.4 W/m power consumption, this strip generates an impressive 700–1650 lumens per meter (≈106–120 lm/W efficacy). Such brightness makes it suitable for accent lighting, alcove illumination, under‑cabinet lighting, cove light bands, wardrobes, and feature walls.
Key benefits:
- Dim‑to‑warm capability: gently transitions from cool to warm white, ideal for circadian-friendly environments and mood lighting.
- Smart & integrable: compatible with PWM controllers and major smart‑home systems for dynamic lighting schemes and scene setting.
- Durable build: robust copper FPC and optional waterproofing (up to IP68) ensure reliable performance in various conditions.

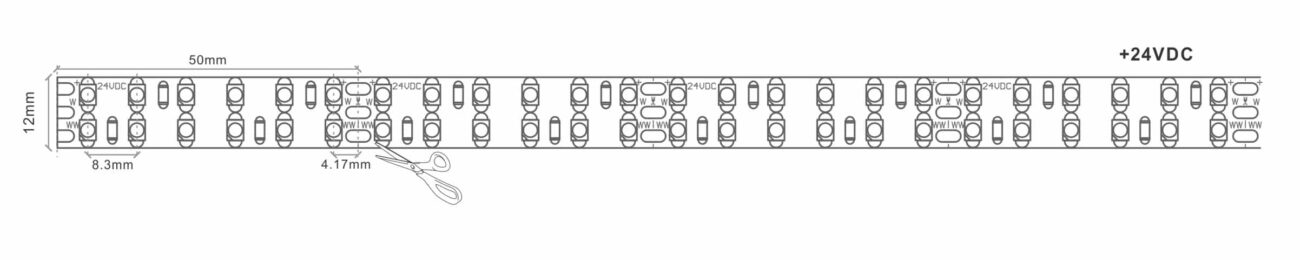

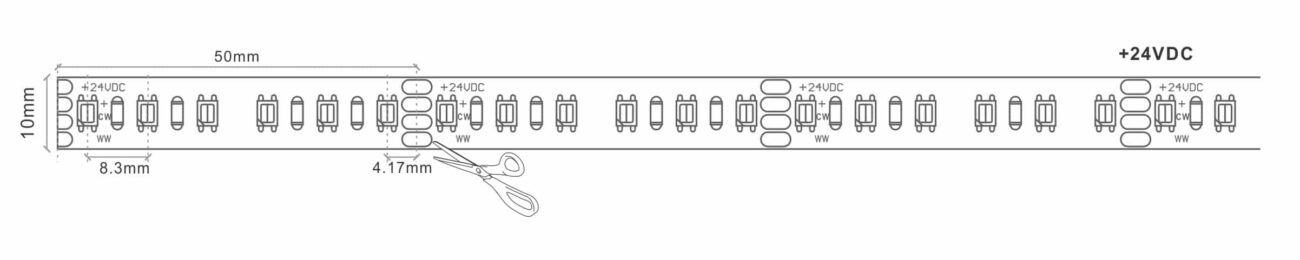

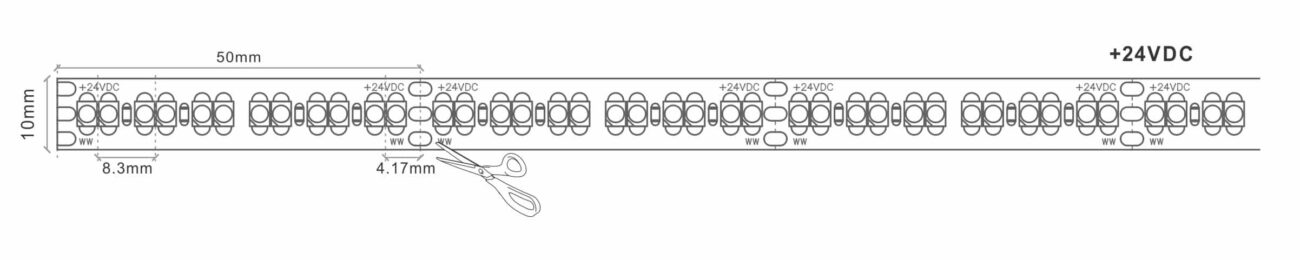

- Project-grade flexibility: simple cut‑to‑length design (every 50 mm), available in 5 m reels, ready for plug-and-play or custom fit-outs.
Key Technical Features
- LED Configuration: Dual-channel SMD2216 chips; color‑tunable white (WW+W).
- CRI / Color Quality: ≥90 standard; ≥94 optional for accurate color rendering ideal for design-centric spaces(Rhea Led Linear, environmentallights.com).
- Color Temperature: 1800–6500 K; dim‑to‑warm 2100–3000 K variant.
- Voltage & Power: 12–24 V DC, ≤14.4 W/m, PWM dimming supporting up to 6 A current(EST Lights).
- Brightness & Efficiency: 700–1650 lumens/meter; 106–120 lm/W efficiency(Rhea Led Linear).
- LED Density: 240 LEDs/m enabling rich light output(Super Lighting LED).
- FPC & Durability: 3 oz copper for thermal dissipation; IP rating scalable from IP20 to IP68.
- Form Factors: available in cut‑to‑length 5 m reels; integrates with over 800 aluminium profiles(Rhea Led Linear).
- Control & Compatibility: PWM dimmable; fits modern smart home and building management systems.
- Build & Energy: eco‑friendly, UV resistant, no optical radiation; backed by LM‑79 testing and industrial-grade materials(EST Lights).
- Applications: excellent for cove lighting, display lighting, wall grazing, wardrobe illumination, façades.
Introducing the WW+W Tunable – EST-FS2216WW+W-240-24-Y white LED strip—engineered for architectural excellence in smart, human-centric lighting applications.
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
