LED Profile Lighting, 2,500+ Aluminium Profiles for Architects, Designers & Project Buyers
Rhea LED Linear manufactures the widest range of LED aluminium profiles available from any single manufacturer, over 2,500 variants in 100+ cross-section geometries, extruded from architectural-grade AL6063-T5 aluminium in widths from 4mm to 250mm. From recessed and trimless profiles to pendant, bendable, in-ground, and waterproof systems, Rhea LED Linear profiles transform LED strip lights into finished linear luminaires for architects, designers, and project buyers across 50+ countries since 2011.
What Is an LED Aluminium Profile?
An LED aluminium profile, also called an LED channel, LED extrusion, or LED profile lighting, is a precision-extruded aluminium housing that holds, protects, and diffuses an LED strip light, transforming a bare strip into a finished architectural luminaire. A complete profile system has four parts: the extruded aluminium body (which also acts as a heatsink), a diffuser cover (opal, frosted, clear, or lensed), end caps, and mounting hardware.
The profile does three essential jobs beyond holding the strip. It manages heat, aluminium dissipates LED heat 8–12× more effectively than mounting a strip directly on plasterboard, extending lifespan and protecting colour stability. It controls light, the diffuser converts visible LED dots into a smooth, continuous line, and lensed diffusers shape the beam. And it protects the strip from dust, moisture, UV, and physical damage. Rhea LED Linear extrudes all profiles from AL6063-T5, the architectural-grade aluminium alloy chosen for its extrudability, corrosion resistance, surface finish quality, and thermal conductivity.
Profile, Channel, or Extrusion, What's the Difference?
These three terms describe the same product. "LED profile" is the common term in European, Middle Eastern, and Asian markets. "LED channel" is widely used in North America and Australia. "LED extrusion" is a manufacturing term describing how the aluminium is formed, heated and pushed through a shaped die. At Rhea LED Linear, all three refer to the same range of 2,500+ aluminium housings. Whether you specify a "profile," a "channel," or an "extrusion," you are specifying the same precision-engineered aluminium luminaire housing.
The Rhea LED Linear Profile Range, 100+ Cross-Section Geometries

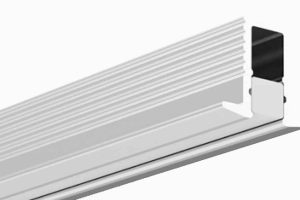

Recessed Profiles, Plaster-in and slot-in profiles that sit flush within ceilings and walls for a clean, integrated line of light. Includes trimless drywall profiles for a seamless, frameless finish.

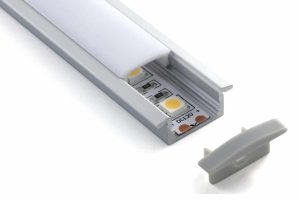

Surface-Mounted Profiles, Slim and wide profiles mounted directly onto ceilings, walls, and surfaces where recessing is not possible. The most versatile and widely specified profile type.
Pendant & Suspended Profiles, Suspended linear profiles for offices, retail, and hospitality, creating floating lines of light. Single runs or continuous configurations up to 45 metres.

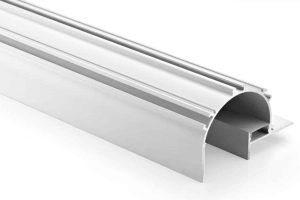

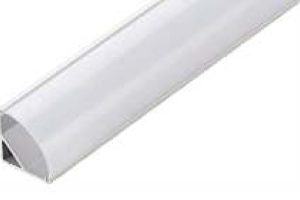

Corner Profiles, 45° corner profiles for cove lighting, ceiling-to-wall transitions, and concealed indirect illumination.

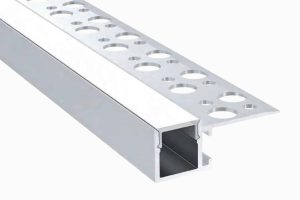

Trimless Profiles, Frameless, plaster-in profiles that disappear into the architecture for a pure line of light with no visible housing.

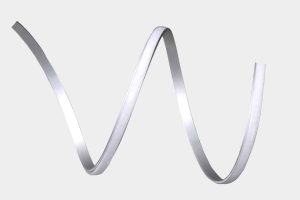

Bendable Profiles, Flexible aluminium profiles that curve to a minimum 120mm radius, following arcs, circles, and organic architectural forms.

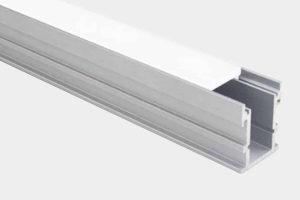

In-Ground Profiles (IP67), Walkable, weather-sealed profiles for floors, pathways, driveways, and landscape, rated for foot traffic and water exposure.

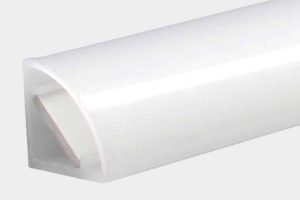

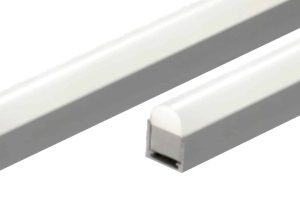

Waterproof Profiles (IP65/IP67), Sealed profiles for bathrooms, kitchens, wet areas, and outdoor installations.

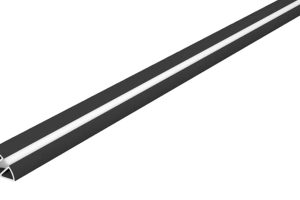

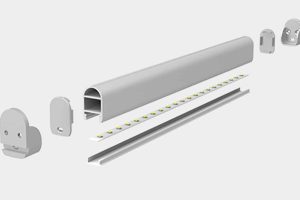

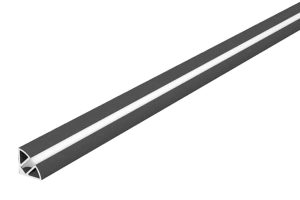

Furniture Profiles, Compact profiles from 4mm width for shelving, joinery, display cases, wardrobes, and cabinetry integration.

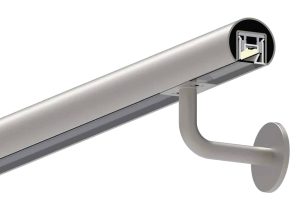

Handrail Profiles, 42mm-diameter profiles that integrate continuous lighting into handrails and balustrades for staircases and ramps.

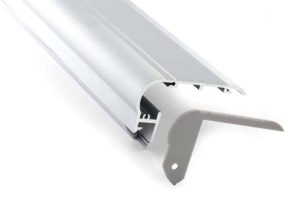

Staircase & Step Profiles, Nosing and step-edge profiles for staircase lighting and safety illumination.

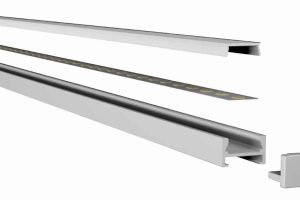

Magnetic Track Profiles, Modular magnetic track systems for reconfigurable lighting layouts in retail and commercial spaces.

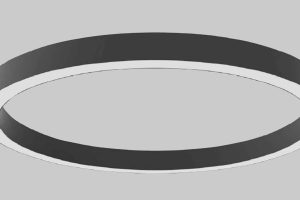

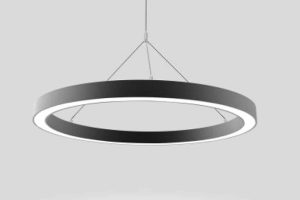

Ring & Circular Profiles, Curved profiles forming illuminated rings and circles from 300mm to 3,000mm diameter, with custom diameters up to 20 metres.

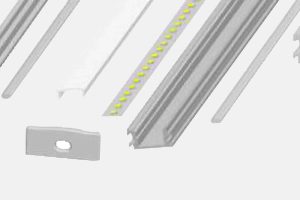

Free-Assemble Modular Profiles, X, L, and T connectors for creating continuous geometric patterns, grids, and custom shapes.
Profile Specifications
| Specification | Range |
|---|---|
| Total Variants | 2,500+ |
| Cross-section geometries | 100+ |
| Aluminium Grade | AL6063-T5 (Architectural grade) |
| Width Range | 4mm – 250mm |
| Mounting Types | Surface, Recessed, Pendant, In-ground, Corner |
| Diffuser Options | Opal PMMA, Frosted PC, Clear, lensed (30°/40°/50°/60°) |
| Finishes | Anodised silver, Powder-coated white, Matte black, Custom RAL |
| Bendable Minimum Radius | 120mm |
| Maximum continuous run | Up to 45m with connectors |
| IP ratings (sealed profiles) | IP65, IP67 |
| Certifications | CE, RoHS (TUV, SAA, BIS on request) |
| Custom Capability | Custom dies, Custom finishes, Custom lengths |
Who Specifies Rhea LED Linear LED Profiles?
Architects specify recessed, trimless, and pendant profiles to integrate continuous lighting into ceilings, walls, and architectural details with a clean, finished appearance.

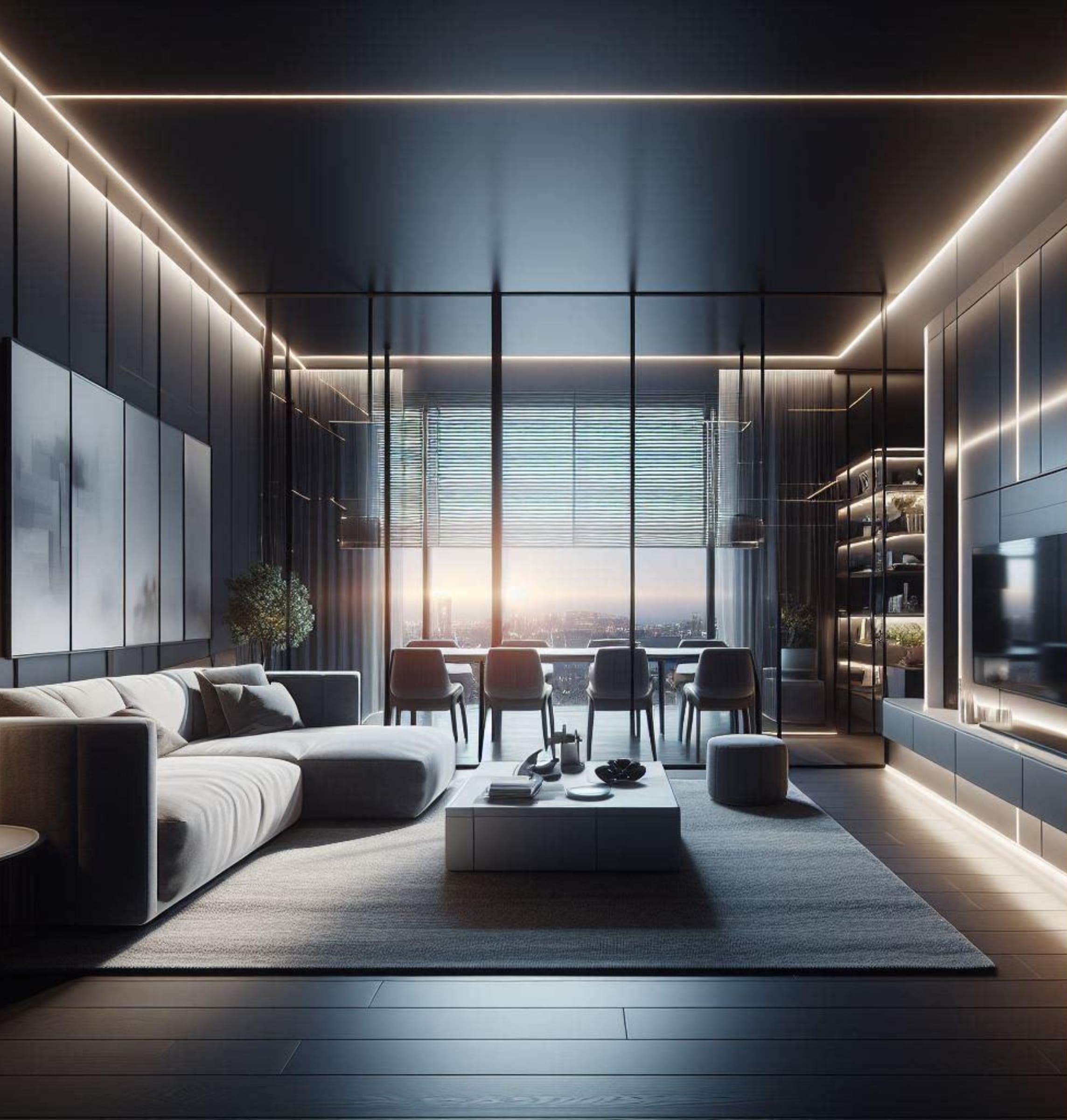

Interior designers use slim, furniture, and surface profiles for cove lighting, under-cabinet illumination, joinery, wardrobes, and residential feature lighting.
Lighting designers select profiles by diffuser optic, opal for uniform wash, lensed for directional beam, and specify finishes to match the interior palette.
Hospitality and commercial developers specify profiles across large projects for corridors, guest rooms, lobbies, and public areas, with single-source consistency.
How to Choose the Right LED Profile
Step 1: Choose the mounting method. Recessed (plaster-in/slot-in) for flush integration, surface-mounted where recessing isn't possible, or pendant/suspended for floating lines of light.
Step 2: Match the profile to the architectural detail. Trimless for seamless frameless finishes, corner profiles for cove transitions, bendable for curves, in-ground for floors, furniture profiles for joinery.
Step 3: Size the profile to the strip. Match the profile channel width to your LED strip width (4mm strips need narrow furniture profiles; wide multi-row strips need wide profiles), and ensure adequate depth for heat dissipation.

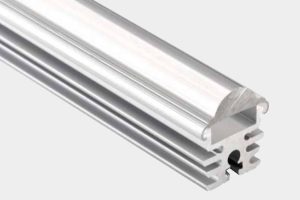

Step 4: Select the diffuser. Opal PMMA for uniform, dot-free wash (standard for visible applications). Frosted for moderate diffusion. Clear for maximum output in concealed runs. Lensed (30°–60°) for directional beam control.
Step 5: Choose the finish. Anodised silver, powder-coated white, or matte black as standard; custom RAL colours for project-specific requirements.
Step 6: Verify IP rating for the environment. Standard profiles for dry interiors; IP65/IP67 sealed profiles for bathrooms, kitchens, outdoor, and in-ground applications.
Frequently Asked Questions
What is an LED aluminium profile? An LED aluminium profile is a precision-extruded aluminium housing that holds, protects, and diffuses an LED strip light, transforming a bare strip into a finished architectural luminaire. It provides thermal management (dissipating LED heat 8–12× better than direct mounting), optical control (the diffuser creates a uniform line of light), and mechanical protection. Rhea LED Linear manufactures 2,500+ variants in AL6063-T5 grade.
What is the difference between an LED profile, LED channel, and LED extrusion? All three terms refer to the same product, a precision-extruded aluminium housing for LED strip lights. "LED profile" is common in European, Middle Eastern, and Asian markets; "LED channel" is used in North America and Australia; "LED extrusion" is a manufacturing term. Rhea LED Linear manufactures 2,500+ of these housings in 100+ cross-section geometries, whichever term you use.
What aluminium grade are Rhea LED Linear profiles made from? All Rhea LED Linear profiles are extruded from AL6063-T5 aluminium, the architectural-standard alloy chosen for excellent extrudability (enabling complex cross-sections), strong corrosion resistance, smooth surface finish that accepts anodising and powder coating cleanly, and sufficient thermal conductivity to act as an effective heatsink for the LED strip.
What is the difference between a surface and a recessed LED profile? A surface-mounted profile attaches directly onto a ceiling or wall and is visible as a slim line. A recessed profile sits flush within the surface, plaster-in or slot-in, so only the line of light is visible, with the housing concealed. Trimless recessed profiles take this further, creating a frameless line of light with no visible edge. The choice depends on whether you want the profile visible or fully integrated.
What is a trimless LED profile? A trimless LED profile is a recessed, plaster-in profile designed to be finished flush with the surrounding plaster or drywall, leaving no visible frame, trim, or edge, only a clean line of light appears to emerge directly from the surface. Trimless profiles deliver the most minimal, integrated architectural lighting finish.
Can LED profiles be curved or bent? Yes. Rhea LED Linear manufactures bendable aluminium profiles that curve to a minimum radius of 120mm, following arcs, circles, and organic forms. For complete circles and rings, Rhea LED Linear produces circular profiles from 300mm to 3,000mm diameter, with custom diameters up to 20 metres for statement installations.
What is the widest LED profile range available? Rhea LED Linear manufactures over 2,500 aluminium profile variants in 100+ cross-section geometries, among the widest ranges available from any single manufacturer. The range covers surface, recessed, pendant, corner, trimless, bendable, in-ground, waterproof, furniture, handrail, staircase, magnetic, circular, and modular profiles in widths from 4mm to 250mm.
Can Rhea LED Linear manufacture custom LED profiles? Yes. Rhea LED Linear operates in-house extrusion tooling with custom die capability. From your dimensional drawing, Rhea LED Linear’s engineering team designs and produces a custom die, then manufactures profiles to your exact cross-section. Custom finishes (any RAL colour) and custom lengths are also available.
Specify Rhea LED Linear LED Profile Lighting
From a 4mm furniture profile to a 20-metre circular pendant, from a trimless plaster-in detail to an IP67 in-ground walkway, Rhea LED Linear's 2,500+ profile range covers every architectural integration scenario, supplied directly from the manufacturer in AL6063-T5 grade.
Profile lighting
Profile lighting from lighting stores near me for linear outdoor lighting, ceiling light and linear suspension lighting with LED light strip. These linear profiles can create lighting for cove lighting, which is both aesthetically pleasing and functional. Plus, it’s easy to install led strip lights using profile extrusion.
If you’re in the market for LED aluminium profiles, there are a few things you’ll want to keep in mind before making your purchase. First, take note of the profile’s structure. The maximum tape width of each channel should be compatible with the LED tape you’re using.
Second, consider the installation process. Every profile comes with a different set of instructions. Some are surface mounted, while others are recessed or suspended. Therefore, make sure you know how to cut, crease, and install the profile at the appropriate location. With these factors in mind, you’ll be able to choose the right LED profile for your needs.
There are a few different types of LED profiles that are commonly used in various applications. These include surface mounted, recessed, and corner/angled profiles. Each type has its own pros and cons, so it is important to choose the right one for your needs. These linear profiles are applicable for a variety of applications, from coves, ceiling light to stairways. Furthermore, they can provide bright light and energy-efficient illumination with a LED power supply.
RHEA LED linear offers over 1000’s of different shapes & sizes of linear lighting profiles for Indoor & outdoor architectural lighting. Whether you need a wall-mounted, bendable, or anti-glare profile, we have what you need. Our ring circular profiles can be hung from the ceiling and come in a variety of diameters. Secondly, they are both decorative and functional, making them ideal for use in commercial buildings and homes.
The sizes of these LED strip diffusers are 4MM up to 250MM in width. Made especially for cabinets, stairs, floors, closets, wardrobes, walls, ceiling, facades and infinite designs. Some aluminium profile diffusers are with 30, 40, 50, 60 and wall washer degree lenses for specific lighting needs. PMMA diffusers are thin and emit more light than acrylic diffusers and are bendable. Since these profiles are customizable, it can be useful in a variety of lighting spaces.
Types of profile extrusions or channels.

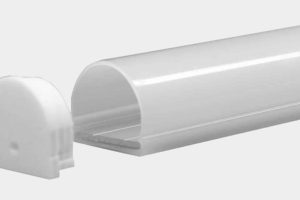

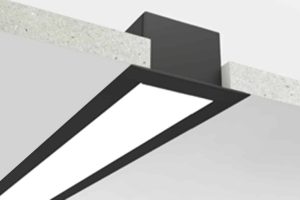

Regular, Slim Line, Broad, Office, IP65, IP67, Façade, Refrigeration, Smart Arc, Ring Circular and Customized.
Aluminum profiles come in powder-coated in standard white, off-white and silver. Connectors to join aluminium profiles are available in shapes of X, L and T. Gigantic sized aluminium profiles are part of customization for specialized projects. The sizes vary from 15mtrs to 45mtrs of aluminium profile extrusions with each extrusion size of max. 3mtrs.
Aluminium profile extrusions diffuse heat emitted from LED strip lights. Angled profiles channels avoid glare to human eyes and are used in stairs. Aluminum profiles extrusions or channels are applicable for inground walk over lighting. Aluminum extrusions vary from IP20-IP67. Infinite lighting designs, shapes, and sizes are possible with aluminium profiles and extrusions. Our range of mini profiles are small in size which can help light up narrow areas. Linear led lights on the ceiling will look beautiful and enhance the living space. Lighting showrooms can also use the profiles to give a modern look to their interior.

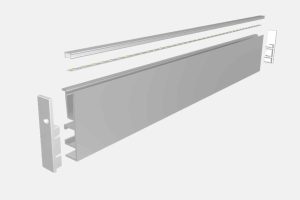

The decorative LED aluminium profiles are majorly applicable for corners and niches. Also, they come in various wattage & ingress protection of IP20 available in lengths of 0.5-3M. Transparent and opal PC covers/ diffusers with clips and accessories help to form uniform lighting. Made available with high-grade aluminum AL6063-T5 and powder coated in silver/black/white finishes. Over 100’s of different shapes & sizes for architectural indoor lighting, outdoor architectural lighting and multi purpose lighting.
Besides, combining different types of decorative profiles with LED strip lights can create infinite architectural and interior lighting solutions. With the advancement of LED technologies, lighting stores, lighting designers, architects & interior designers can use these versatile LED decorative profiles into their projects to create infinite lighting solutions for indoor & outdoor lighting.
If you’re looking for a modern and stylish way to light up your space, then LED aluminium profiles are the way to go. These linear profiles are also perfect for creating cove lighting, and they come with all the necessary accessories for a uniform look. Plus, they’re available in various diffuser types to suit your needs. These profiles can significantly reduce energy compared to a tube light. LED linear fixtures are always better than normal lights as they look modern.

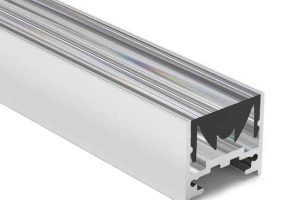

Our newest range of linear outdoor lighting profiles includes cove profiles which are premium, modular, rotatable and tiltable with original designs. Hence, these linear lights are highly used in luxury homes, cove, ceiling light, curtains, kitchen, wardrobes and bathrooms. Overall, best quality linear products for high-end projects. These will surely set a good mood to any lighting space. These profiles for lighting showrooms are perfect for lighting stores and retail outlets.
High quality profiles from lighting stores near me for ceiling light with LED light strip. Now available in Europe, US, UAE, Saudi Arabia, Oman, Kuwait, Israel, Maldives, Russia, India, Australia, New Zealand & many more countries. Want to market our light fixtures? Write to us NOW
