RHEALP119
By:
Additional information
¥16.92
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

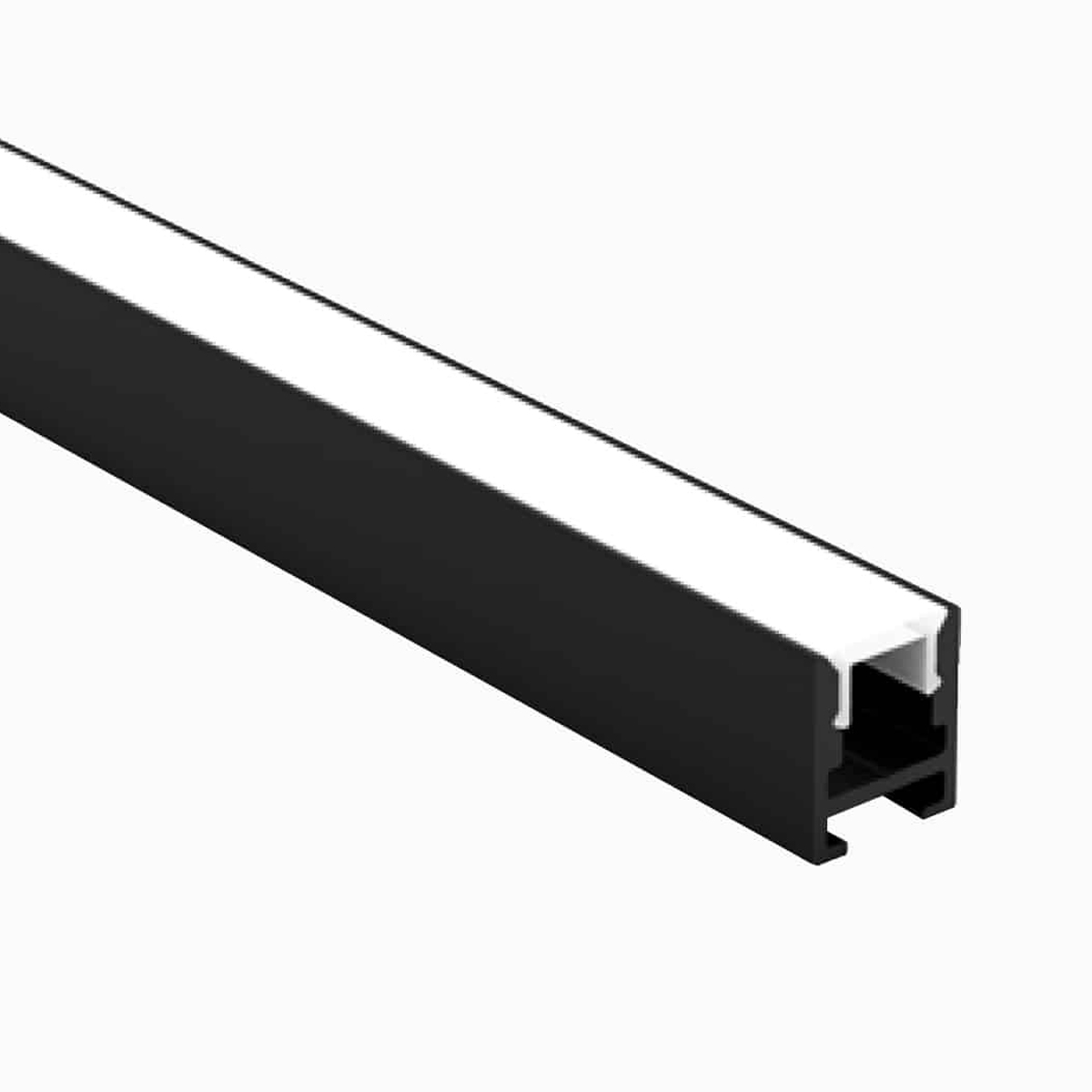

Elevate your design projects with the Mini Corner Profile Lighting – RHEALP119 , a compact, sleek, and highly versatile LED aluminium profile created for premium architectural lighting. With a demure 10 × 12 mm cross-section, this streamlined profile fits exquisitely into tight corner spaces—ideal for under-cabinet accents, hidden cove glows, recessed wardrobe fixtures, and concealed ceiling coves. Its anodized aluminium body quickly dissipates heat generated by LED strips, extending lamp life—perfect for demanding commercial, residential, or hospitality environments.
The frost‑finished polycarbonate diffuser evenly disperses light across a 180° beam angle, eliminating harsh spotting and glare for a warm, inviting illumination. From crisp whites to soft warm tones, this profile blends ambient functionality with elegance.
Installation flexibility is enhanced by comprehensive accessory support: 90° corner connectors, vertical and horizontal joiners, sealed end caps to prevent dust buildup, and suspension wires for suspended ceiling installations. Reaches up to 6 m in continuous runs, allowing clean, uninterrupted lighting lines in large-scale projects.
Available in multiple finishes—sleek anodized silver, pure white, matte black, or refined gold—RHEALP119 integrates seamlessly with any décor palette. Designed for professional applications, it meets rigorous architectural and lighting specifications, ensuring both beauty and performance.
Whether illuminating kitchen niches, bathroom cabinetry, retail shelving, or ambient ceiling troughs, this profile reshapes spaces with precision light. Its minimal shape accommodates LEDs up to 12 mm wide, making it an essential solution in sophisticated lighting design.
- Compact yet powerful: 10 × 12 mm profile for discreet corner installation
- Clean, diffused illumination: Frosted PC diffuser + 180° beam
- Flexible setup: Available connectors, caps, and suspension options
- Customizable finish: Silver, white, black, or gold anodized aluminium
Technical Features
- Material & Finish: Durable extruded aluminium core with anodized finishes (silver, white, black, gold) ensures structural strength and corrosion resistance .

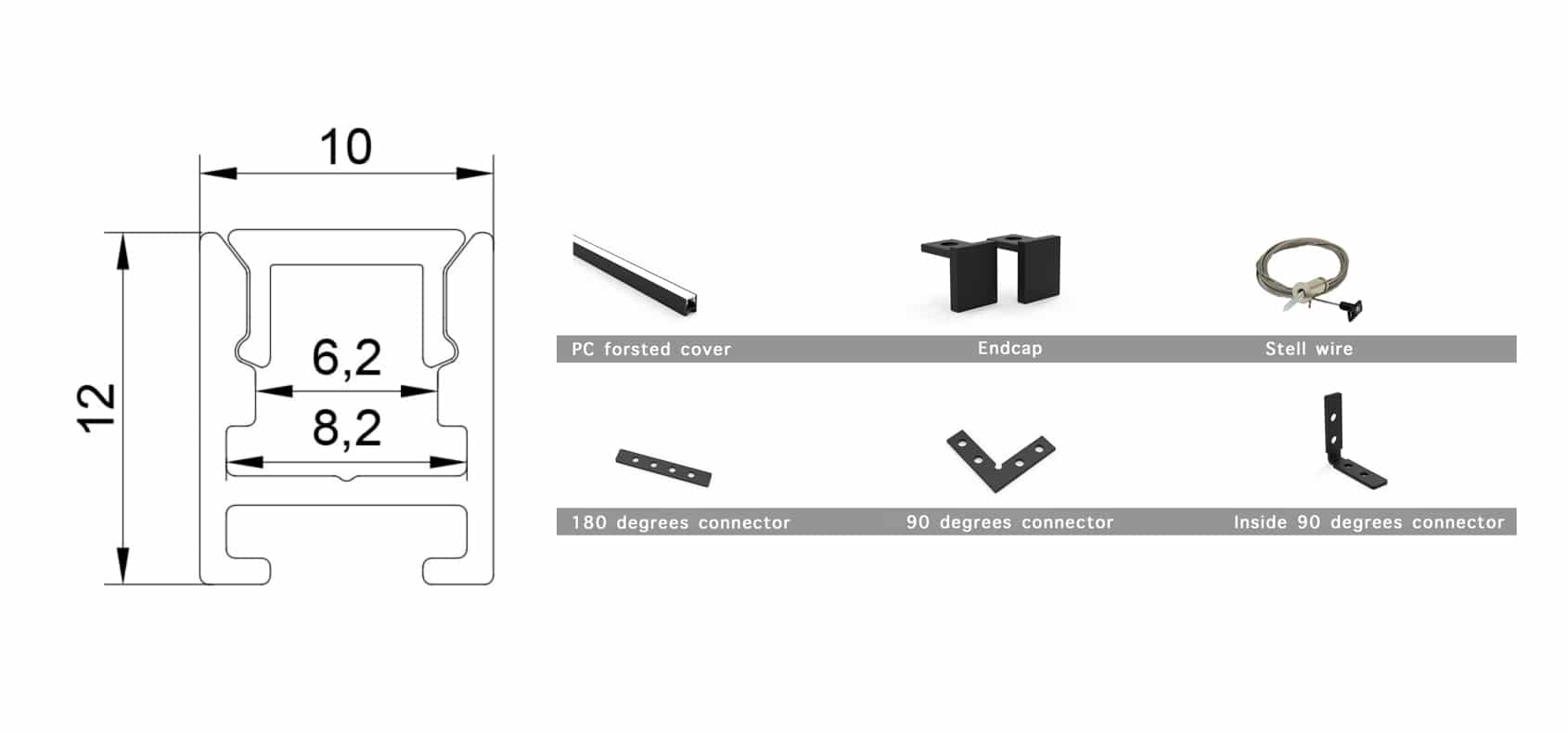

- Dimensions: Slim yet sturdy 10 × 12 mm structure, blends invisibly in corners, wardrobes, and coves.
- LED Compatibility: Accommodates LEDs up to 12 mm wide—easy to install inside the channel with adhesive or clips.
- Diffuser: Frosted polycarbonate diffuser offers 180° light dispersion; minimizes hotspots and maximizes glare control.
- Length Options: Stock lengths up to 6 m, ideal for continuous light lines without joints (rhealedlinear.com, rhealedlinear.com).
 Installation Accessories
- Connectors: 90° corner joints, vertical/horizontal, enabling clean connector-free visual runs.
- End Caps: Closed caps seal the channel, protecting cables from humidity or dust.
- Mounting Options: Steel wire hangers facilitate suspended installations in ceilings or dropped troughs. These make RHEALP119 perfect for technical installations while preserving design aesthetics.
Finishes & Customization
Choose from timeless anodized aluminium finishes—silver, matte white or black, even premium gold—to match any interior palette. Custom lengths up to 6 m allow design flexibility to suit bespoke projects.Architectural lighting demands precision. Introducing the Mini Corner Profile Lighting – RHEALP119, an elegant 10 × 12 mm extruded aluminum system designed to deliver high-quality linear lighting in constrained spaces, creating seamless, indirect illumination for modern interiors.
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
