NEON Flex Side Bend RLLNFSB3032
By:
Additional information
¥0.00
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

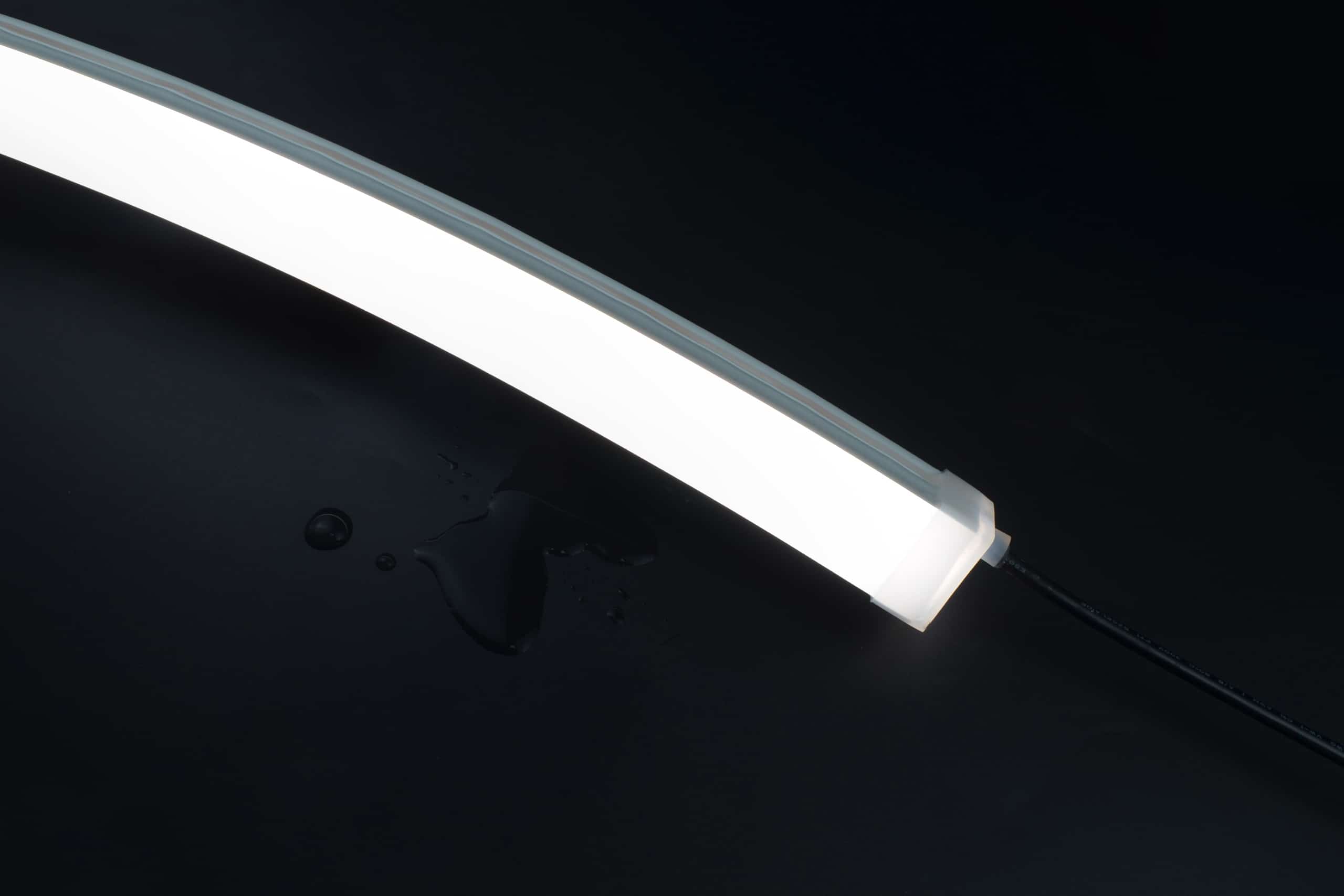

Elevate your designs with the Neon Flex Side Bend Light –Â RLLNFSB3032, a premium LED neon linear light crafted for architects, interior designers, builders, and lighting professionals. This versatile and stylish side-bend neon flex delivers smooth, seamless curves, making it the ideal solution for curved coves, niches, profile lighting, and creative design accents both indoors and outdoors.
Key Features:
- Side‑bend flexibility: Engineered to bend laterally for precise alignment along curved surfaces, arches, ceilings, facades, and pathways.
- Weather‑resistant: With an IP68-rated silicone housing, this neon flex is waterproof, UV‑resistant, and saltwater-proof—perfect for exterior facades, poolside, and landscape accents.
- High-impact IK10 protection: Rugged and durable for high-traffic, commercial, or outdoor installations.
- Low-voltage 24 V DC: Energy-efficient and compatible with low-voltage architectural lighting systems.
- Bright, uniform illumination: Features high-quality LEDs with excellent lumen per watt performance and high CRI for crisp, vibrant lighting in design-centric environments.
- Long lifespan: Rated with a ~50,000 hrs life, it offers reliable performance and low maintenance.
- Customizable installation: Easily cuttable at precise intervals, available with front/side power feed options and compatible accessories like mounting clips, channels, and connectors.
- Dimmable: Fully dimmable via PWM/DMX/ELV/TRIAC systems, ideal for dynamic lighting and ambiance control.
Why It Works for Your Project:
Designed for home designers, architects, fit-out contractors, and lighting designers, the RLLNFSB3032 combines form and function. Its seamless curves make it a go-to for architectural accents, uplighting, downlighting, and feature highlights. Whether used in hospitality, retail, or residential settings, the ultra-slim profile and dot-free glow provide clean, modern aesthetics. The rugged weatherproof housing ensures longevity and reliability in both indoor and exterior environments. Transform spaces with elegant line lighting that is durable, flexible, and visually stunning. Contact Rhea LED or your regional distributor for customized specifications, power feeds, connectors, and project pricing. Illuminate innovation with Neon Flex Side Bend RLLNFSB3032.Technical Specifications (200 words)
| Feature | Specification |
| Flex Type | Side‑bend LED neon (flexible laterally) |
| Dimensions | 04×32 mm profile |
| Voltage | 24 V DC low-voltage |
| Lumen Range | ~195–880 Lm/m (customizable) (rhealedlinear.com, superbrightleds.com, americanlighting.com, rhealedlinear.com, step1dezigns.com) |
| CRI | High; >90 available |
| Ingress Protection | IP68 fully sealed |
| Impact Resistance | IK10-rated |
| Cut Length | Every 50 mm for custom runs |
| Lifespan | ~50,000 hrs typical; up to 100,000 hrs for high-end models |
| Temperature Range | –25 °C to +45 °C |
| Dimming Capability | PWM/DMX/ELV/TRIAC compatible |
| Certifications | CE, RoHS; comparable to UL/cUL via OEM alternatives |
Design & Installation (150 words)
The RLLNFSB3032’s silicone‑encapsulated LED matrix provides full lateral flexibility for seamless curves and architectural lines. Install directly on surfaces or within aluminum channels using specialized mounting clips. Front, side, or bottom power feeds support flexible wiring configurations. Available in continuous custom-length reels, it streamlines installation and minimizes joins. Ideal for cove lighting, linear accents, façade outlines, steps, and pool perimeters.The Neon Flex Side Bend Light – RLLNFSB3032  redefines architectural decorative lighting. Designed for curves and contours, this product offers smooth side-bend capability, high durability, and precision lighting, making it essential for architects, interior designers, fit-out contractors, and builders aiming to elevate residential, commercial, and hospitality environments with linear LED illumination.
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
