Regular Profile: RHEALO2020
By:
Additional information
¥0.00
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
Ready for delivery in 4–5 weeks

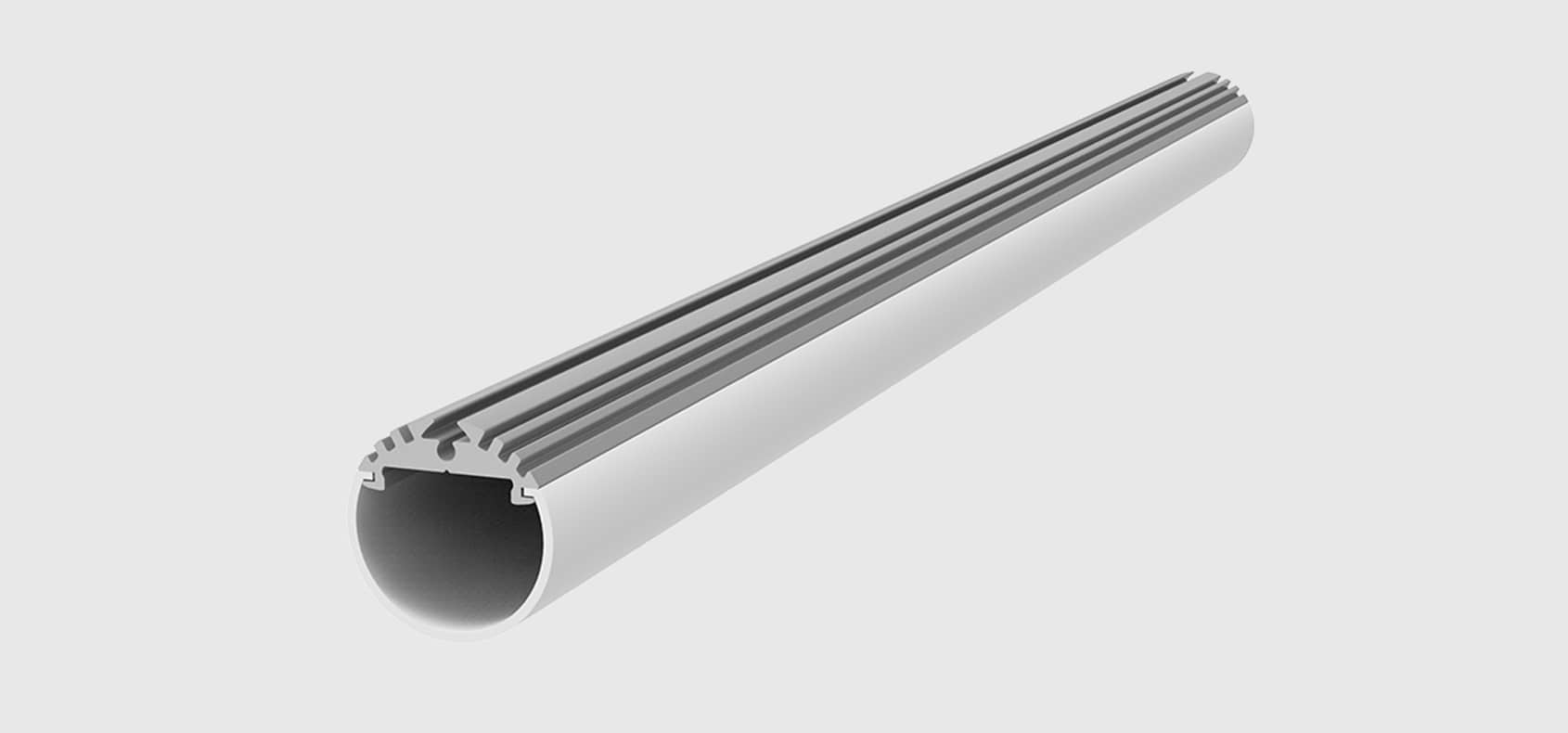

Elevate interiors with elegance and precision using the RHEALO2020 Tubular LED Aluminium Profile the seamless cylindrical lighting solution merging style and function. Designed to meet the demands of sophisticated spaces, this profile blends sleek aesthetics, technical excellence, and versatility. Ideal for pendant lighting, statement linear runs, coves or ambient wash lighting RHEALO2020 is specified by lighting designers, architects, and interiors professionals who value both form and performance.
Design & Finish
Crafted from high-grade aluminium alloy (AL6063-T5), RHEALO2020 features a powder-coated outer body available in Silver, Black or White finishes. Its tubular form (diameter 20 mm) gives a modern, slim silhouette that integrates gracefully into minimal, industrial, contemporary, or transitional interiors. Optional diffusers in Transparent or Opal Polycarbonate (PC) allow you to modulate light from crisp accent beams to soft, diffused ambience.
Technical Excellence
The internal LED PCB width supports up to 10 mm, allowing standard strips or SMD strip modules to be inserted securely. Maximum standard length per run is 3000 mm (3 metres), making this profile perfect for both short pendant installations and long, continuous lighting features. Designed for indoor environments (IP20), it is surface-mountable and with accessories such as steel wires, pendant suspension becomes possible, offering floating cylinders of light. Heat dissipation is handled via the aluminium body, maintaining LED performance and longevity.
Lighting Effects & Applications
With choices of diffuser covers (transparent or opal), RHEALO2020 enables designers to control glare, beam spread, and visual warmth. Use transparent covers for sharper highlights, or opal for smooth, even lighting. Ideal for linear pendant lighting over kitchen islands or dining tables, strip lighting inside niches or coves, wall-washers, feature ceilings, or display lighting. Combine multiple profiles at different heights and lengths to create layered lighting compositions.
Why Specify RHEALO2020
- Clean architectural profile that does not draw attention to itself, letting light define space.
- Flexible choice of finishes & diffusers to match design intent.
- Straight-run lengths to 3 m reduce joints and enhance continuity.
- Solid construction supporting suspension or surface mounting.
- Efficient heat management extending lifetime of LED strips.
| Material: | AL6063-T5 |
| IP Rating: | IP20 |
| PC Cover: | Diffuser |
| Accessories: | End Caps/Mounting Clips/Connector/Magnet |
| Size: | 1000*20mm (L*Dia) |
| Maximum Length: | 3000mm |
| Finish: | Anodized/Powder Coated |
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
