Regular Profile: RHEALP002-RL
By:
Additional information
¥31.64
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

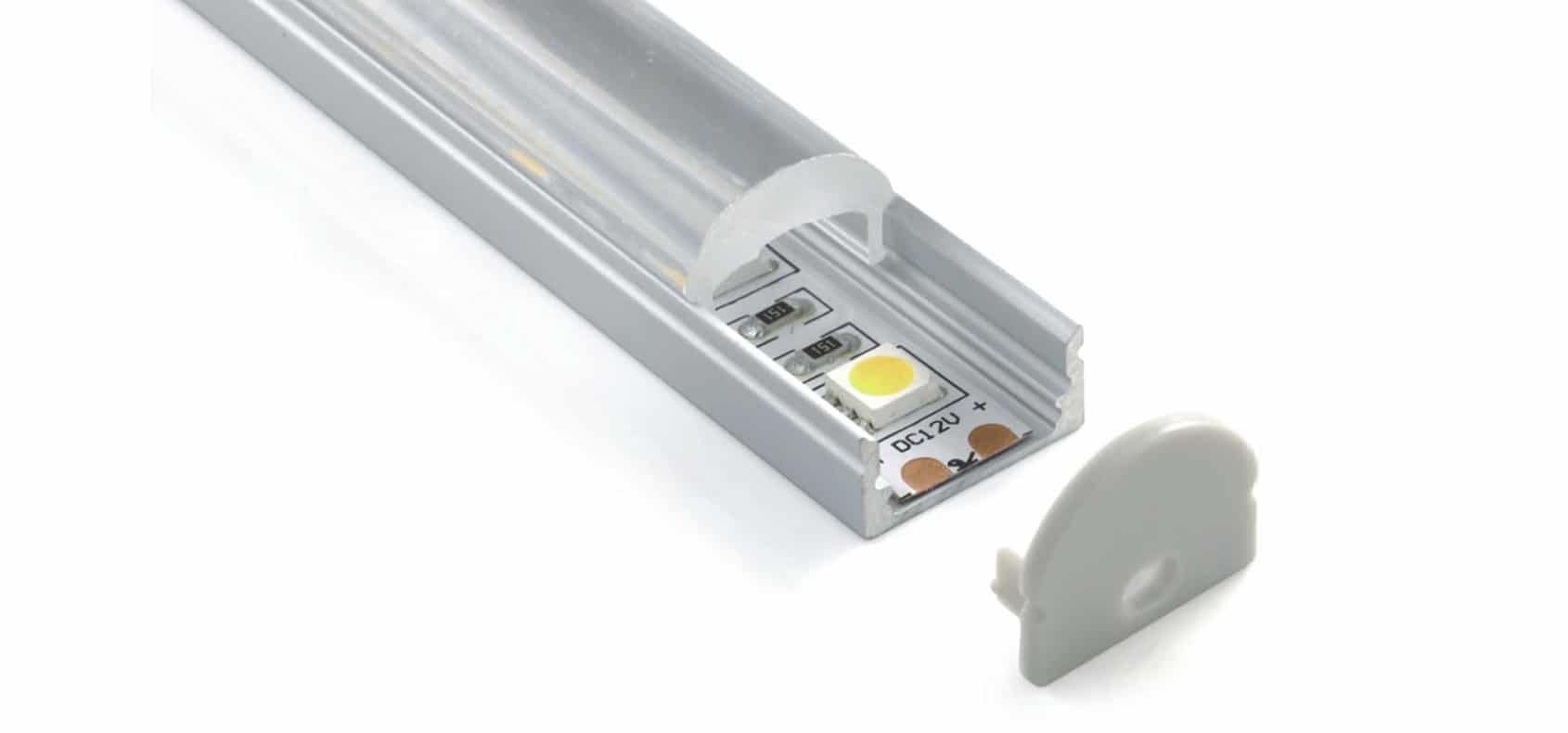

The RHEALP002-RL Aluminium Profile Lighting embodies precision craftsmanship, architectural elegance, and functional lighting control an ideal solution for designers, interior planners, fit-out contractors and builders seeking refined linear LED lighting for both residential and commercial spaces.

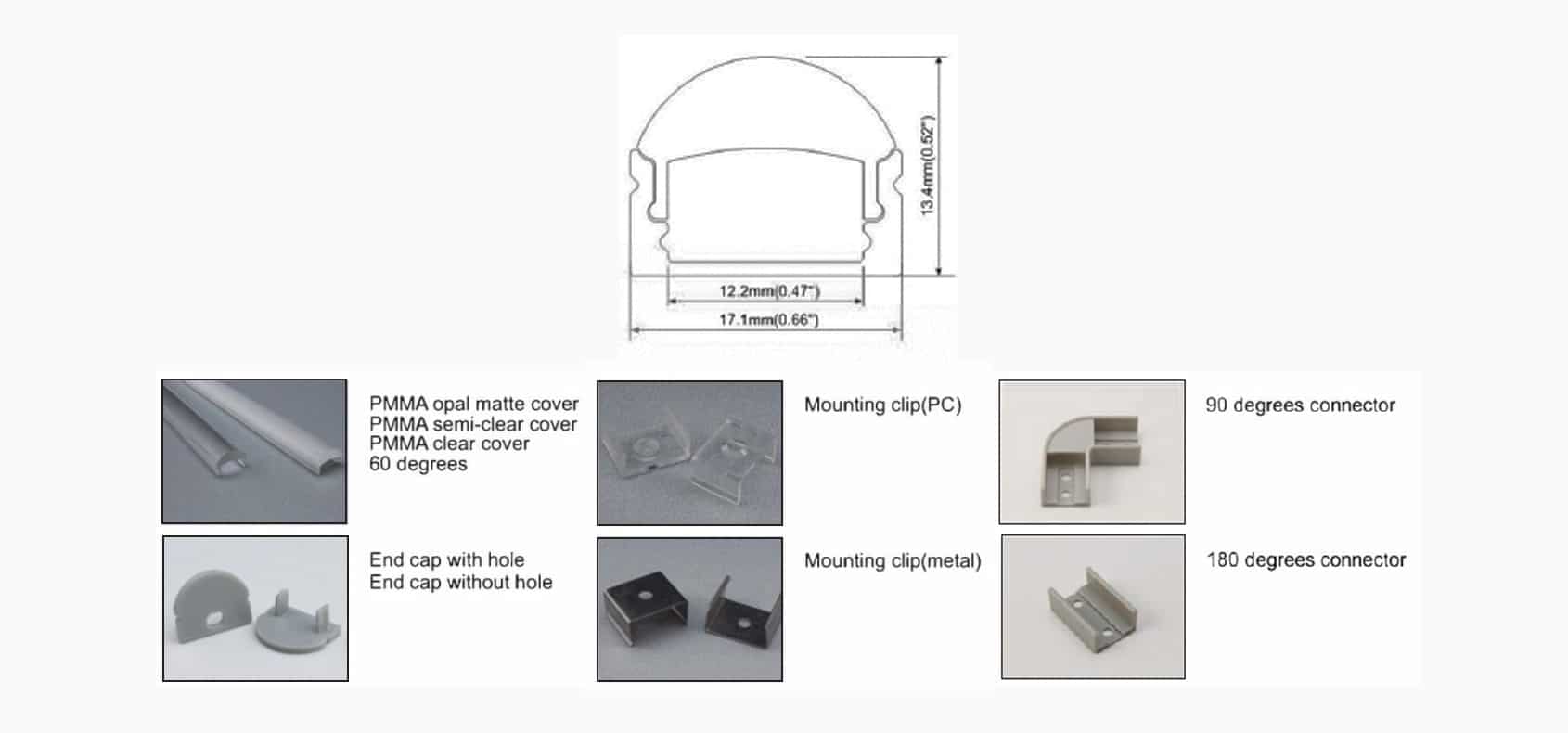

Manufactured from extruded aluminium, RHEALP002-RL delivers a slim, robust, and heat-dissipating housing that enhances LED lifespan while enabling installation in tight architectural details. With compact dimensions (17.1 mm × 13.4 mm), this low-profile channel integrates seamlessly into cabinetry, furniture gaps, coves, wall recesses and ceilings for clean, minimal lines.
The system supports a wide range of diffuser options: PMMA opal matte, semi-clear, clear, plus a 60-degree directional diffuser. These allow designers precise control over beam spread and glare, making the profile light adaptable to ambient, task, accent or feature lighting needs. Its maximum extrusion length of up to 6 metres (continuous runs possible) minimizes visible joins and enhances a monolithic visual.
Key accessories include anodized aluminium end caps (with or without hole), mounting clips (metal or polycarbonate), as well as 180° connectors which ease linear transitions. Finishes are available in anodized aluminium, white, or black allowing the profile to either blend or contrast with interior surfaces depending on the design scheme.
In application: place it in ceilings to highlight precision linear separation, inside kitchen cabinetry for under-shelf lighting, in display niches to enhance feature walls, or along stair treads for architectural accent. Designers will appreciate that the profile supports clean, hidden installation of LED strips while the diffusers diffuse hotspots for a smooth, uniform light.
From technical reliability to aesthetic flexibility, the RHEALP002-RL meets professional expectations: long diffusion lengths, multiple finishes & mounting options, and a sleek form that integrates into modern architectural language. Fit-out contractors and lighting designers will value its mechanical strength, ease of installation, and ability to handle continuous linear runs without compromising performance or look.
For homeowners & design-minded individuals, RHEALP002-RL offers a refined lighting component that elevates space: minimal visible hardware, customizable lighting effects, and finishes that coordinate with cabinetry, walls, ceilings or fixtures. In sum: this profile light bridges the gap between unseen function and visible form delivering excellent light control, sleek design, and enduring build quality.
| Material: | AL6063-T5 |
| IP Rating: | IP20 |
| PC Cover: | 60 Degree Opal/Semi-Clear/Clear/Diffused |
| Accessories: | End Caps/Metal Clips/PC Clips |
| Size: | 1000*17.1*13.4mm (L*W*H) |
| Maximum Length: | 3000mm |
| Finish: | Anodized/White/Black |
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
