RHEALP004-R

By:

Additional information

¥24.60

The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation

📥 Download Catalog

📄 pdf file

Ready for delivery in 4–5 weeks

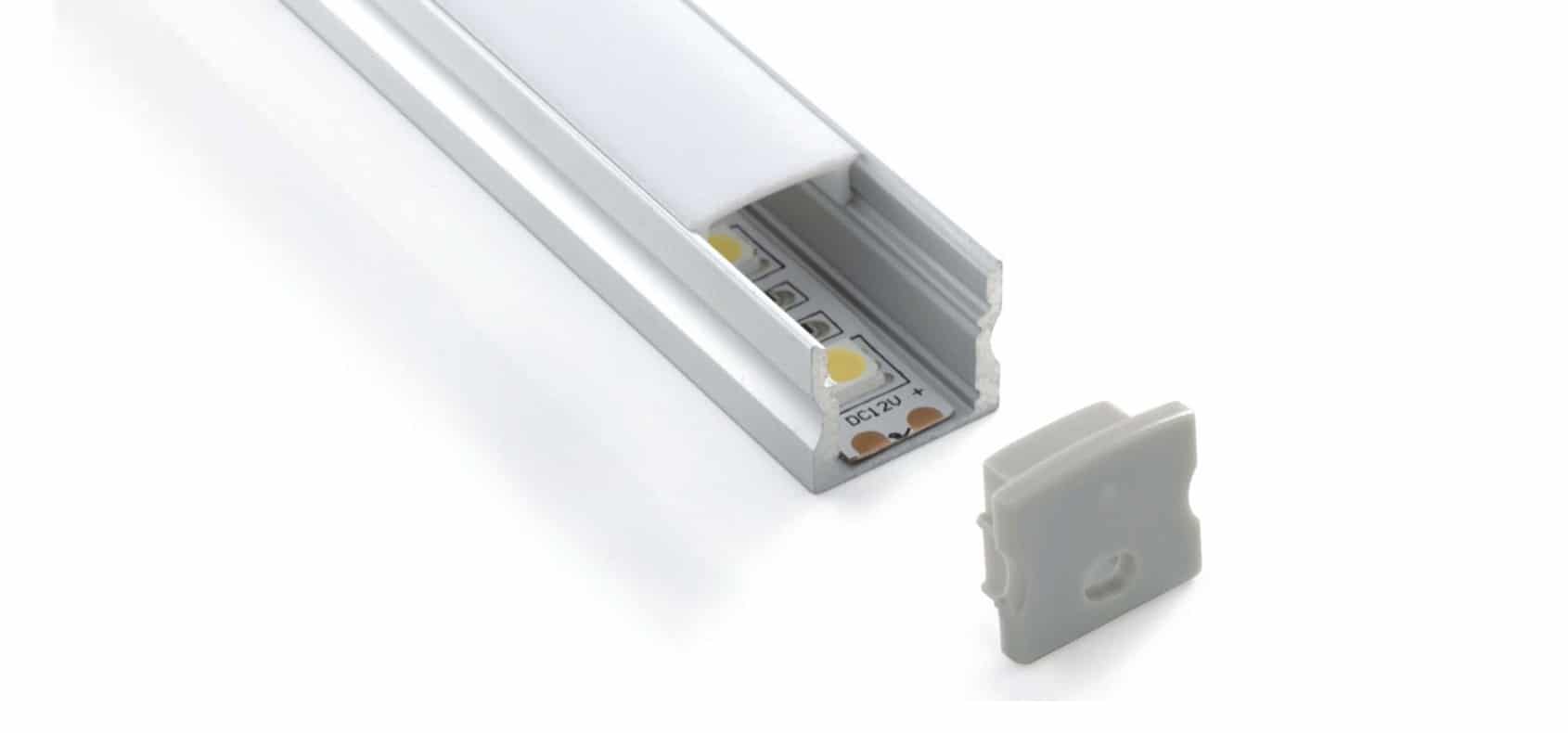

Elevate your architectural lighting with the RHEALP002-R Aluminium Profile Lighting, a sleek and versatile aluminum LED profile that blends high performance with refined aesthetics. Designed for precision, durability, and elegant integration, this profile is ideal for both large-scale projects and bespoke interiors where light should complement design not overpower it.

Key Features

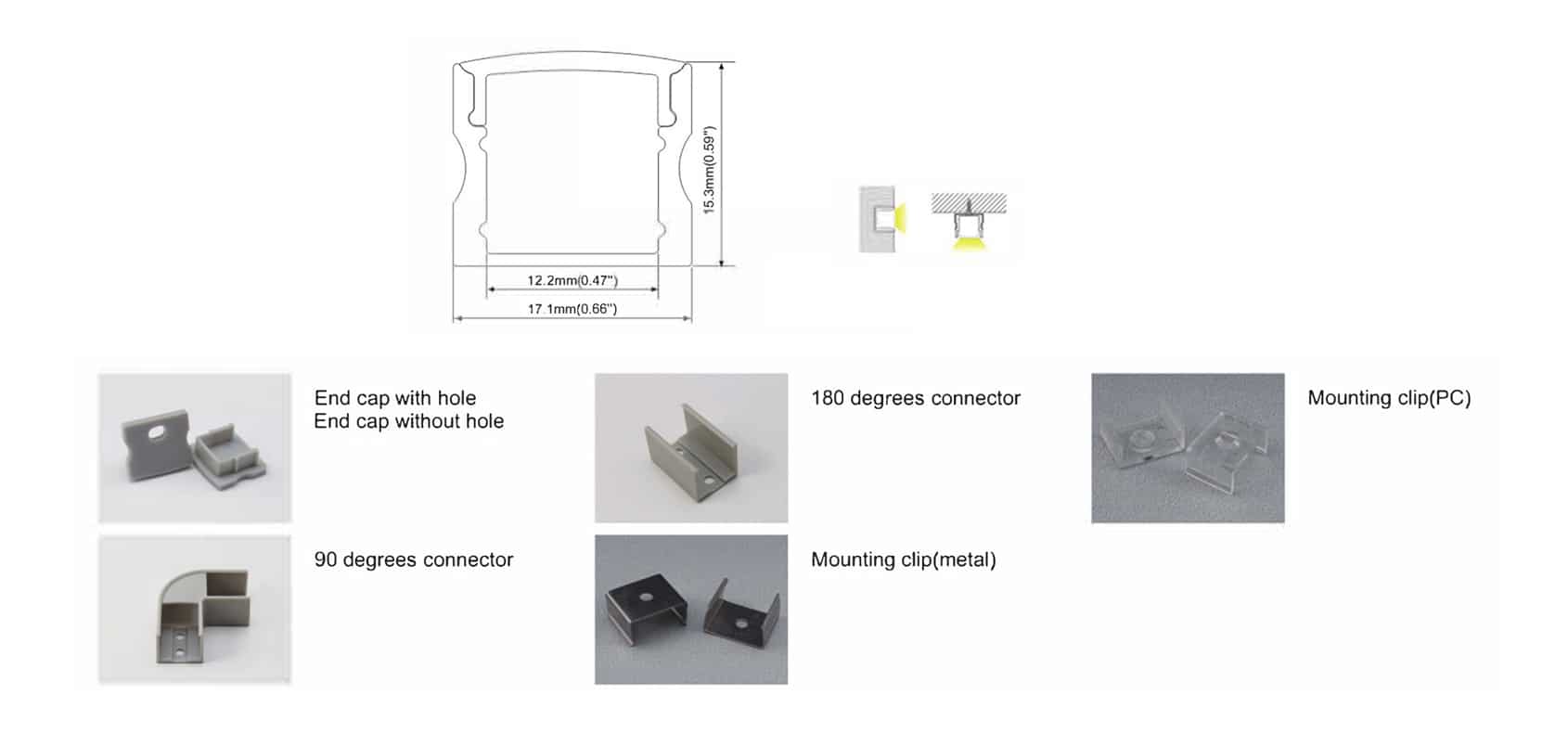

  • Slim, elegant profile (17.1 × 8 mm): Its minimal cross-section allows it to be recessed into narrow spaces, cabinetry, coves, furniture edges, or ceilings for a seamless look.
  • Extruded aluminum body: Engineered for strength and thermal management. The aluminum aids heat dissipation, increasing LED lifespan and maintaining performance. Finish options include anodized aluminum, white, or black for aesthetic matching.
  • Variety of diffusers: PMMA diffusers in opal matte, semi-clear, and clear options, plus a polycarbonate (PC) diffused model. This provides control over light diffusion from soft, homogenous glow to crisp, defined linear illumination.
  • Long runs supportive: The profile can be ordered up to 6 meters in length. This allows continuous linear lighting across long runs without unsightly joints.
  • Accessory rich for flexible installation: End caps (with or without hole), mounting clips (metal or other), adjustable brackets, 90° and 180° connectors. Together these accessories allow the profile to be used in diverse situations from straight lines to corners, surfaces or recessed setups.
  • Finish options: Anodized aluminum, white or black finishes ensure compatibility with modern, minimalist, industrial, or contemporary settings. Designed to complement architectural elements without drawing attention to itself.
Material: AL6063-T5
IP Rating: IP20
PC Cover: Opal/Semi-Clear/Clear/Diffused
Accessories: End Caps/Metal Clips/PC Clips/Adjustable Bracket
Size: 1000*17.1*15.3mm (L*W*H)
Maximum Length: 3000mm
Finish: Anodized/White/Black

The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice

Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
