Regular Profile: RHEALP004-RL
By:
Additional information
¥37.49
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

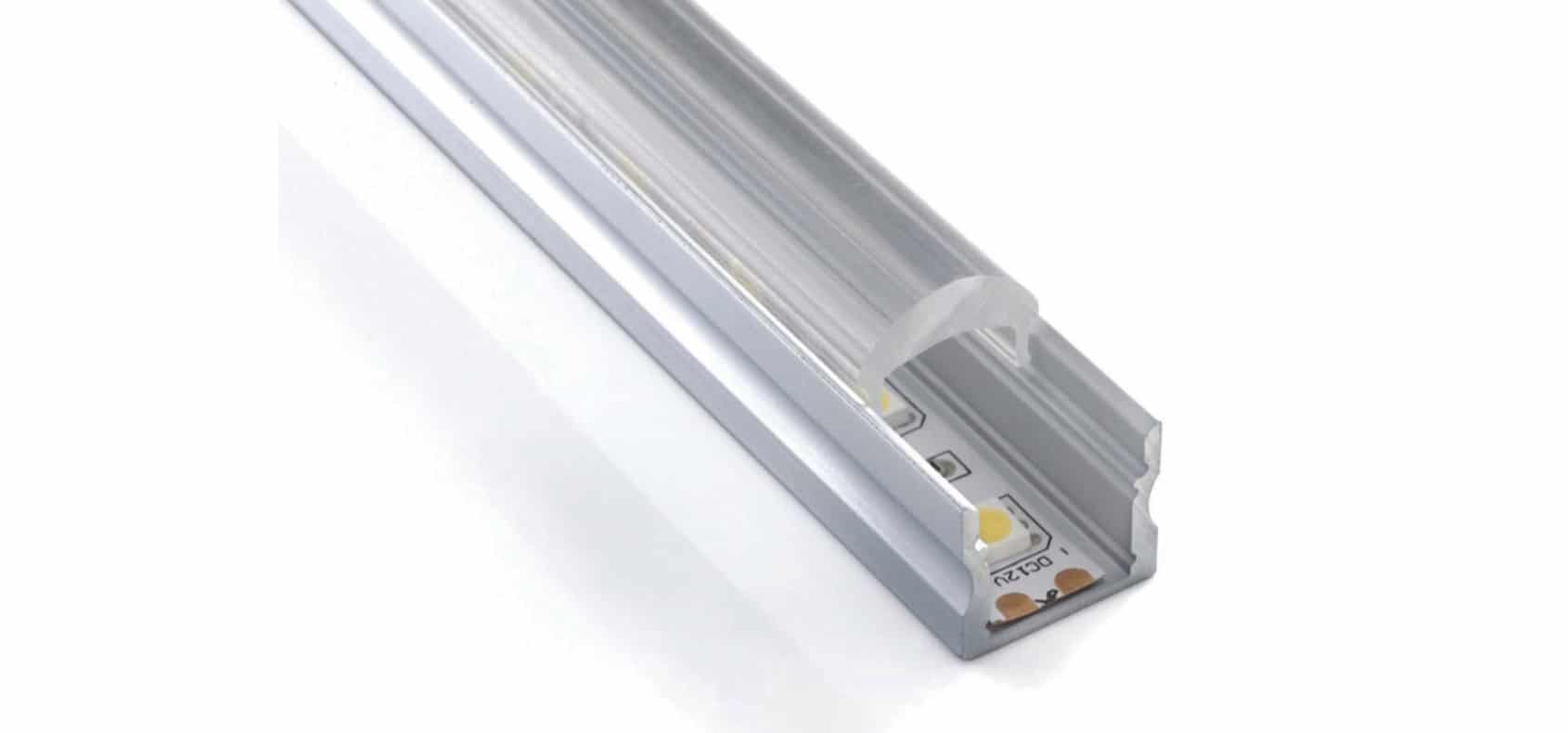

The RHEALP004-RL Aluminium Profile Light is a high-quality architectural LED aluminium profile designed to deliver continuous, elegant lighting solutions for interiors and commercial fit-outs. This linear lighting system is engineered for designers who seek durability, flexibility, and refined aesthetics. Whether for custom cabinetry, cove lighting, display shelving, or premium architectural niches, RHEALP004-RL brings seamless light integration to your projects.

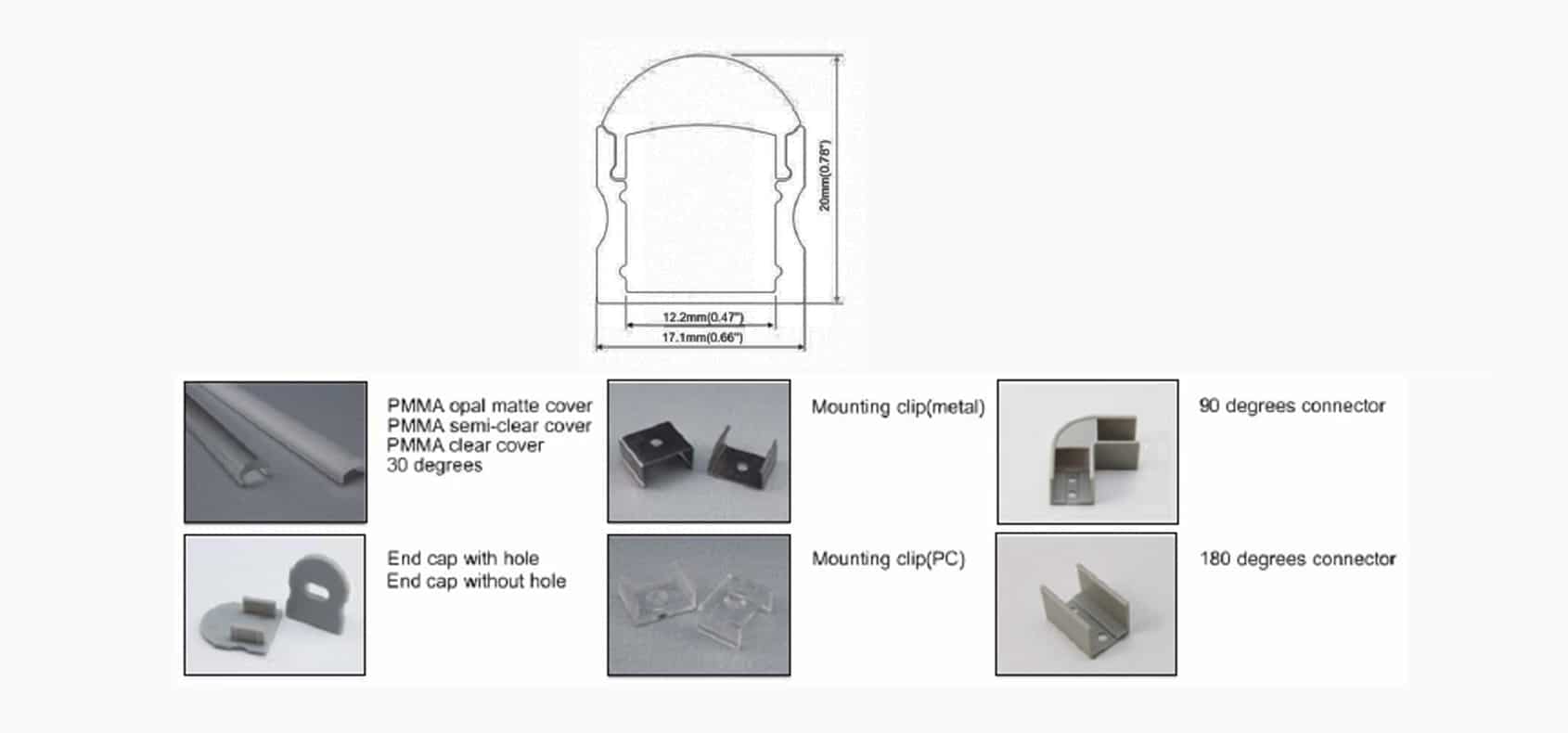

Crafted from extruded aluminium with maximum lengths up to 3 metres, the RHEALP004-RL provides a clean, linear aesthetic, minimizing joints and visual breaks in runs. The profile measures 17.1 × 20 mm, making it slim yet robust well suited for modern ceilings, wall coves, under-cabinet runs, wardrobes, or feature walls.
Light diffusion is customizable via PMMA diffusers offered in opal matte, semi-clear, or clear finishes allowing you to balance brightness and glare. The choice of diffuser finish lets you tailor the light output: opal matte gives a soft, even glow ideal for ambient lighting; semi-clear preserves more brightness with reduced diffusion; and clear maximizes output with minimal diffusion effect for accent or task lighting.
Installation is simplified by a selection of accessories: you can use metal or PC mounting clips for secure fixing; two types of end caps (with or without a hole) for clean finishes and cable entry; also 180° connectors allow seamless continuation of runs around corners or between segments. These detailing points are particularly helpful for designers and contractors who prioritize clean lines and exacting fit-out quality.
The RHEALP004-RL is available in finishes of anodized aluminium, white, or black powder coating each finish chosen to tie in with interior colour palettes while maintaining corrosion resistance and longevity.
From concept to execution, this profile supports infinite possibilities in linear lighting design. With its precision-engineered channel, versatile diffuser options, and accessory suite, RHEALP004-RL lets lighting designers, architects, home designers, and builders create layered lighting schemes that enhance spatial perception while providing functional illumination.
| Material: | AL6063-T5 |
| IP Rating: | IP20 |
| PC Cover: | 15 Degree Opal/Semi-Clear/Clear |
| Accessories: | End Caps/Metal Clips/PC Clips |
| Size: | 1000*17.1*20mm (L*W*H) |
| Maximum Length: | 3000mm |
| Finish: | Anodized/White/Black |
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
