Regular Profile: RHEALP008
By:
Additional information
¥33.98
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

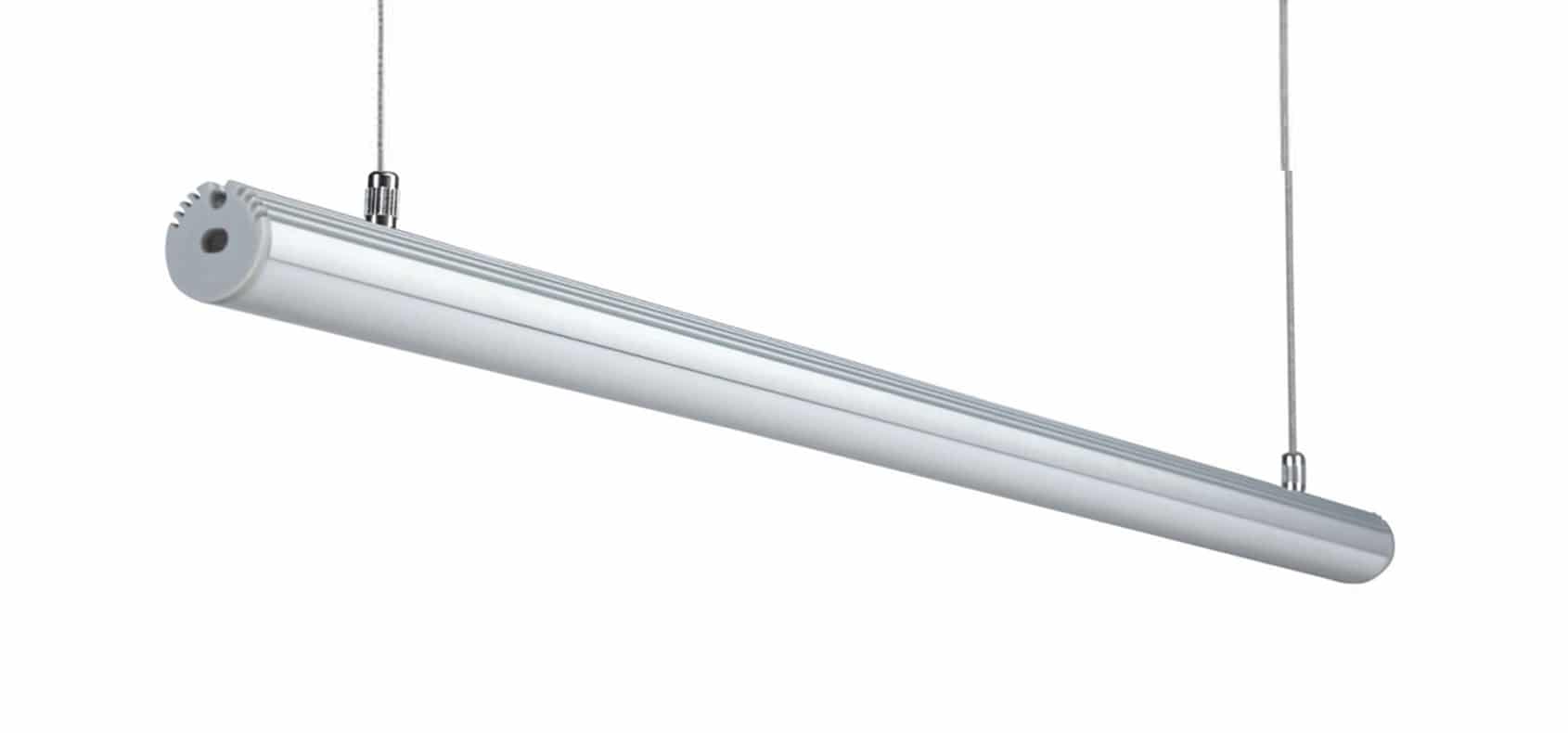

The RHEALP008 Tubular LED Profile redefines the standards for architectural and interior lighting, offering sophistication, flexibility, and durable performance. Designed for designers, architects, and builders who demand both visual elegance and technical reliability, the RHEALP008 delivers striking cylindrical shape lighting with robust materials and versatile finishes.

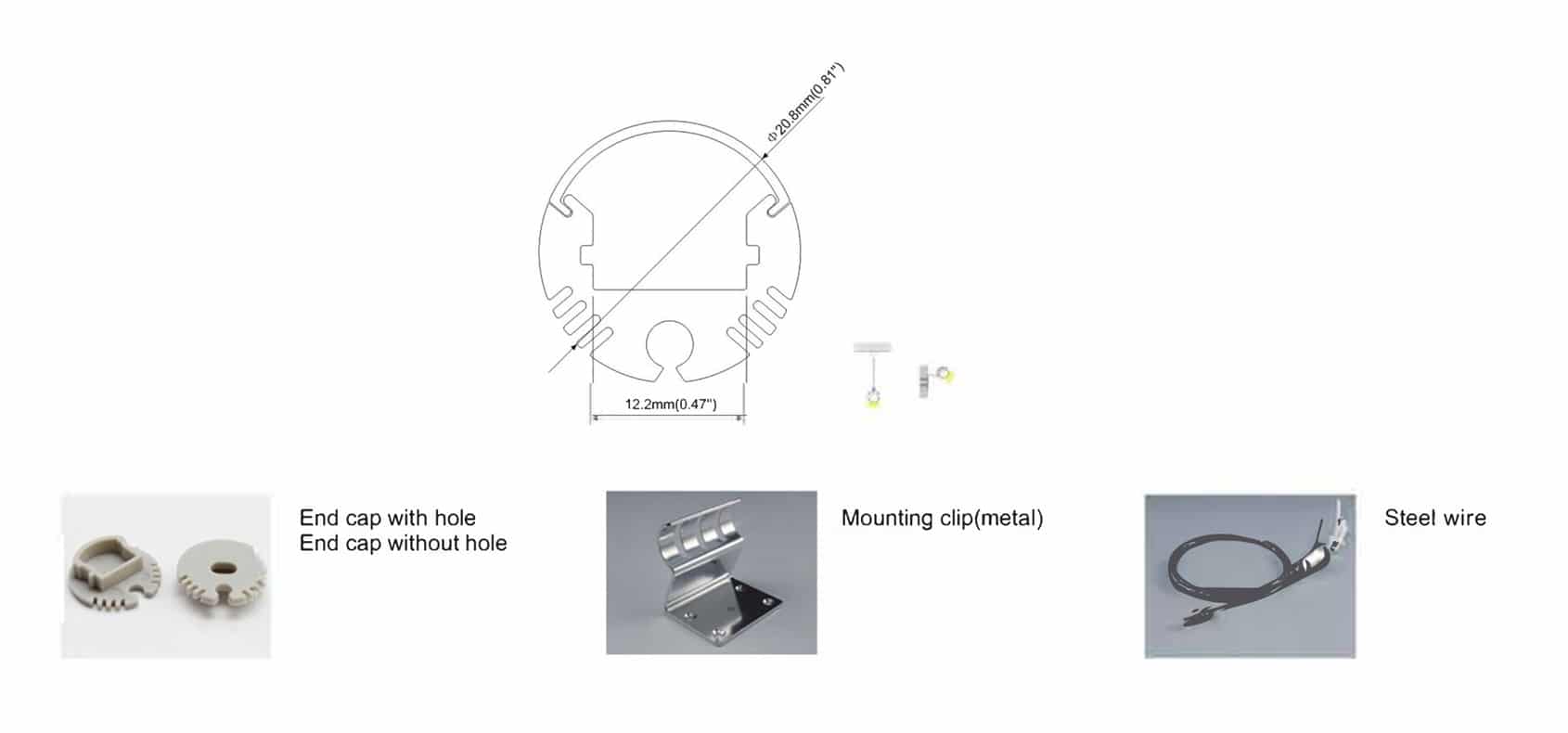

Crafted from extruded aluminium, the body of RHEALP008 has a diameter of 20.8 mm, making it both sleek and substantial thin enough to be minimal, yet rigid enough to handle demanding installations. It supports LED PCB widths of up to 10 mm and can be fabricated in lengths up to 3,000 mm, allowing continuous runs in ceilings, coves, soffits, or suspended lighting features without compromising uniform illumination.
Finishes available include Silver, Black, and White anodized aluminium, matching various design palettes from industrial loft to Scandinavian minimalism and contemporary luxury. Diffuser options include PMMA (opal matte or semi-clear) and polycarbonate diffused lenses, letting you control light diffusion, softness, glare control, and visual impact. Accessories such as mounting clips (metal), end caps (with or without holes), and steel wire suspension systems make it adaptable to different mounting requirements surface, suspended, or embedded.
RHEALP008 is built keeping in mind ease of specification and installation. The cylindrical profile allows for linear lighting designs that are seamless. The selection of diffusers ensures that light quality is excellent, whether you want crisp task lighting or ambient accent lighting. With extruded aluminium construction, heat dissipation is efficient, prolonging LED life and maintaining consistent light output.
For interior designers & architects, this profile is ideal for feature lighting, accenting architectural details, wall-washing, or creating clean continuous lines of light. Fit-out contractors appreciate its standardized dimensions and accessory system that reduces site work. Builders and contractors will find it reliable in terms of materials and finish options, suitable for high-end residential, hospitality, retail, or commercial projects.
Overall, the RHEALP008 Tubular Profile stands out as a refined, technical solution that balances aesthetics, flexibility, and performance perfectly positioned for anyone serious about design, whether in residential, commercial, or bespoke architectural lighting schemes.
Top Keywords in use: tubular LED profile, extruded aluminium profile, diffuser options, continuous linear lighting, architectural lighting, profile light, anodized finish, control glare.
| Material: | AL6063-T5 |
| IP Rating: | IP20 |
| PC Cover: | Opal/Semi-Clear/ Diffused |
| Accessories: | End Caps/Metal Clips/Steel Wire |
| Size: | 1000*20.8mm (L*Dia) |
| Maximum Length: | 3000mm |
| Finish: | Anodized/White/Black |
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
