RHEALP016-R
By:
Additional information
¥41.01
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

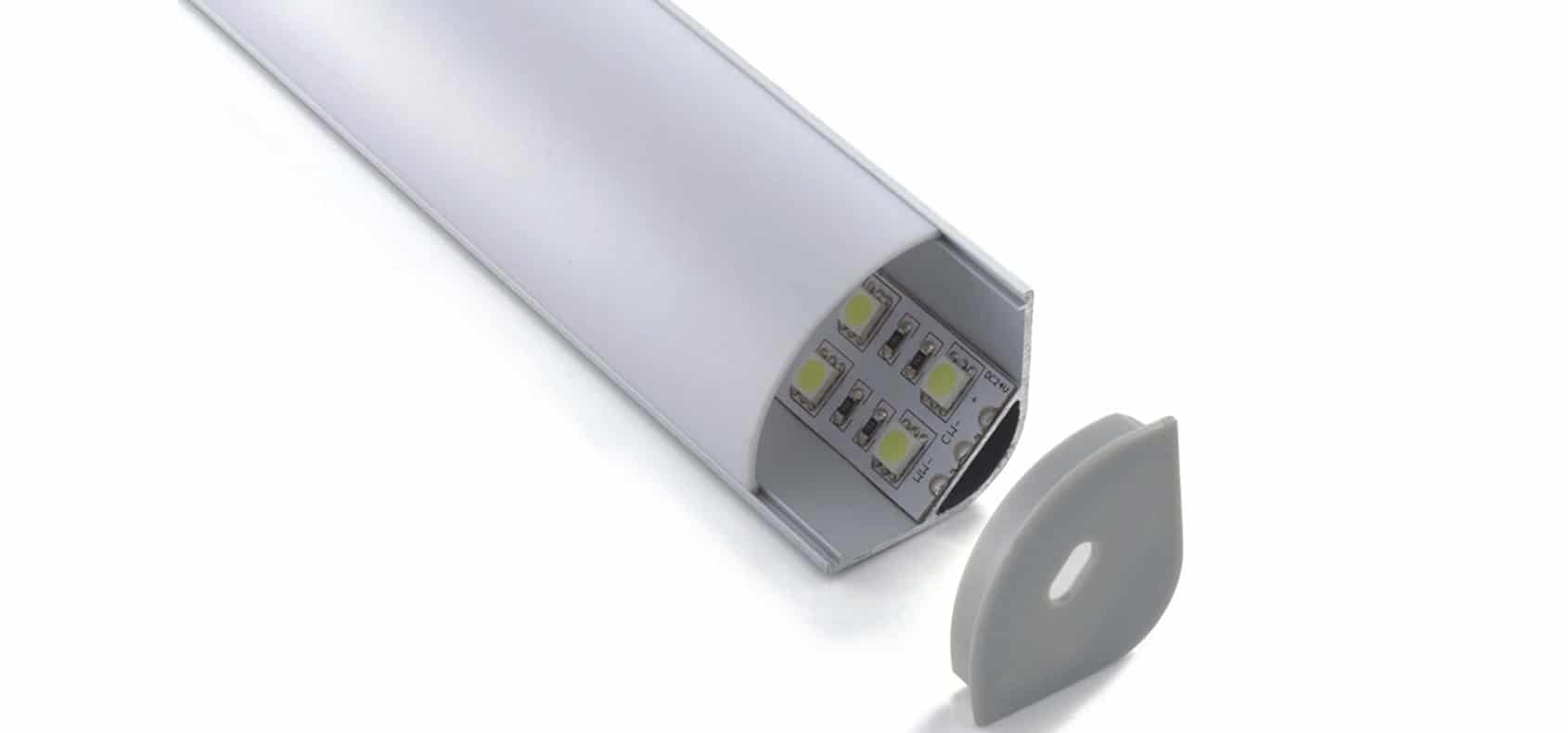

The RHEALP016-R is a premium aluminium linear LED profile engineered for exquisite lighting and seamless integration into architectural, interior, and fit-out projects. Designed to meet the high demands of Home Designers, Architects, Interior Designers, Lighting Designers, Fit-Out Contractors, Builders, and design-conscious homeowners, this profile delivers both form and function with refined aesthetics and technical excellence.
Crafted from extruded aluminium, the profile ensures superior durability, efficient heat dissipation, and a sleek, modern finish. Stocked in anodized aluminium, white, and black finishes, it adapts effortlessly to diverse design palettes whether minimal or expressive. With overall dimensions of 30 mm × 30 mm and a maximum usable length of 3 metres, the RHEALP016-R offers both slim appearance and wide application, from feature coves to continuous linear lighting runs along walls, ceilings, or custom joinery.

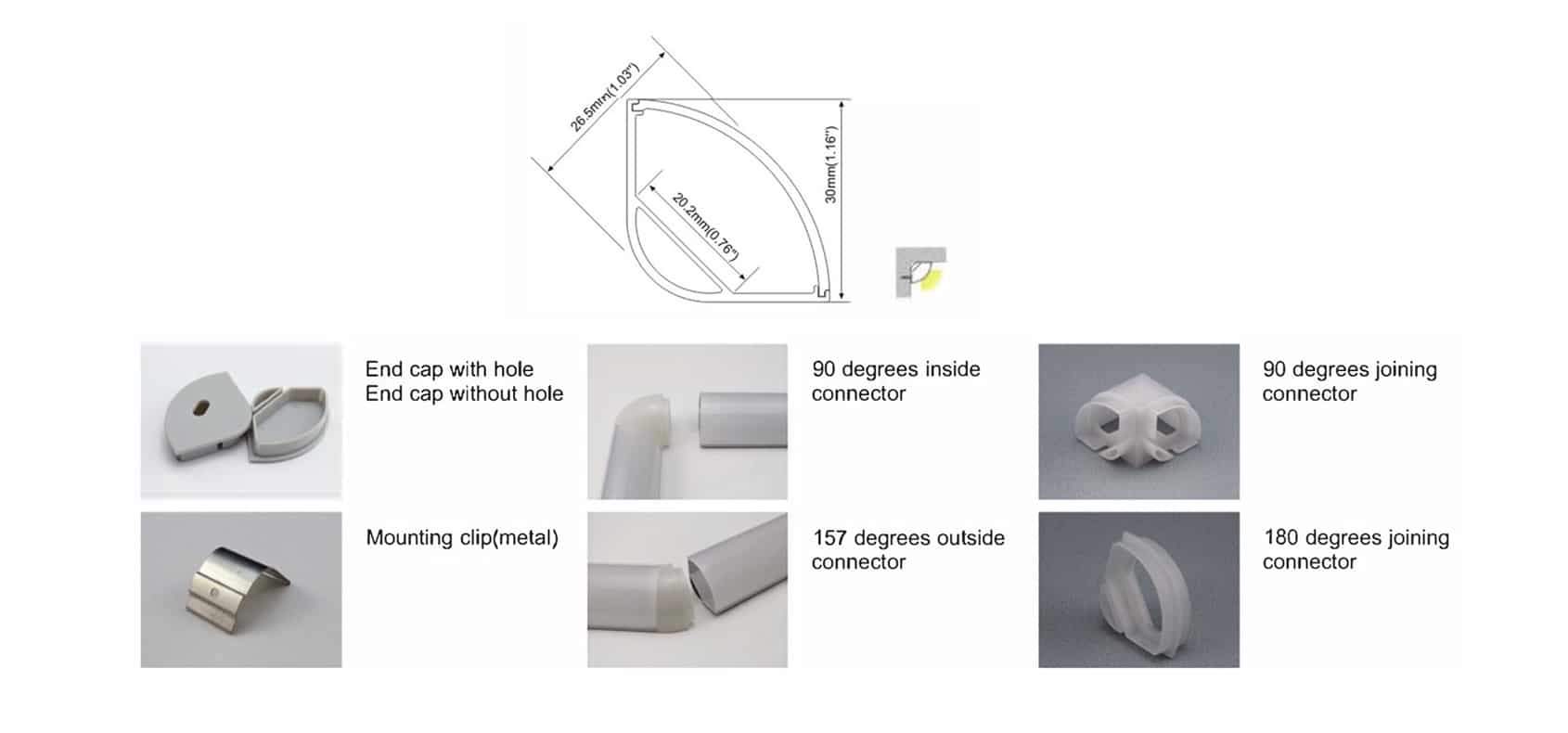

The design includes diffusers available in PMMA opal matte, PMMA semi-clear, and PC diffused variants. These options allow lighting designers to fine-tune diffusion for soft ambient glow, sharper delineation, or somewhere in between, depending on project requirements. Joining connectors (90° and 180°) and end caps (with or without holes) plus metal mounting clips are provided to support clean transitions and professional installation.
Installation flexibility is central: the RHEALP016-R can be surface-mounted or recessed, and with its versatile accessory set, it supports continuous runs with neat, uniform light distribution and sharp corners. For large scale or bespoke architectural lighting installations e.g. commercial interiors, luxury residences, retail, hospitality, or feature lighting this profile delivers clean lines, minimal visual bulk, and reliable performance.
What truly sets the RHEALP016-R apart is its combination of aesthetic subtlety and technical robustness. The extruded aluminium housing acts as a thermal sink, extending LED lifespan and maintaining consistent output. The finish options provide resistance to wear and ensure visual coherence with design elements. Meanwhile, the diffuser choices reduce glare and hotspots, giving designers tight control over ambience and light quality.
In short: RHEALP016-R is the linear lighting solution that merges sophisticated design with practical performance. It allows design professionals to realize lighting intentions cleanly whether highlighting architectural form, enhancing spatial ambience, or defining visual composition. If you are seeking a profile that balances high-end visual appeal, installation flexibility, and lighting technicality, this model delivers every time.
| Material: | AL6063-T5 |
| IP Rating: | IP20 |
| PC Cover: | Opal/Semi-Clear/Diffused |
| Accessories: | End Caps/Metal Clip/90°&180° Connector |
| Size: | 1000*30*26.5mm (L*W*H) |
| Maximum Length: | 3000mm |
| Finish: | Anodized/White/Black |
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
