RHEALP017-R5
By:
Additional information
¥70.29
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks
RHEA’s RHEALP017-R5 aluminium profile light offers a refined, high-performance lighting solution for architects, interior designers, fit-out contractors, and discerning homeowners. Designed to house linear LED lighting in a durable, aesthetically versatile extrusion, its engineering addresses both form and function for residential, commercial or institutional spaces.
What it is & how it fits into design

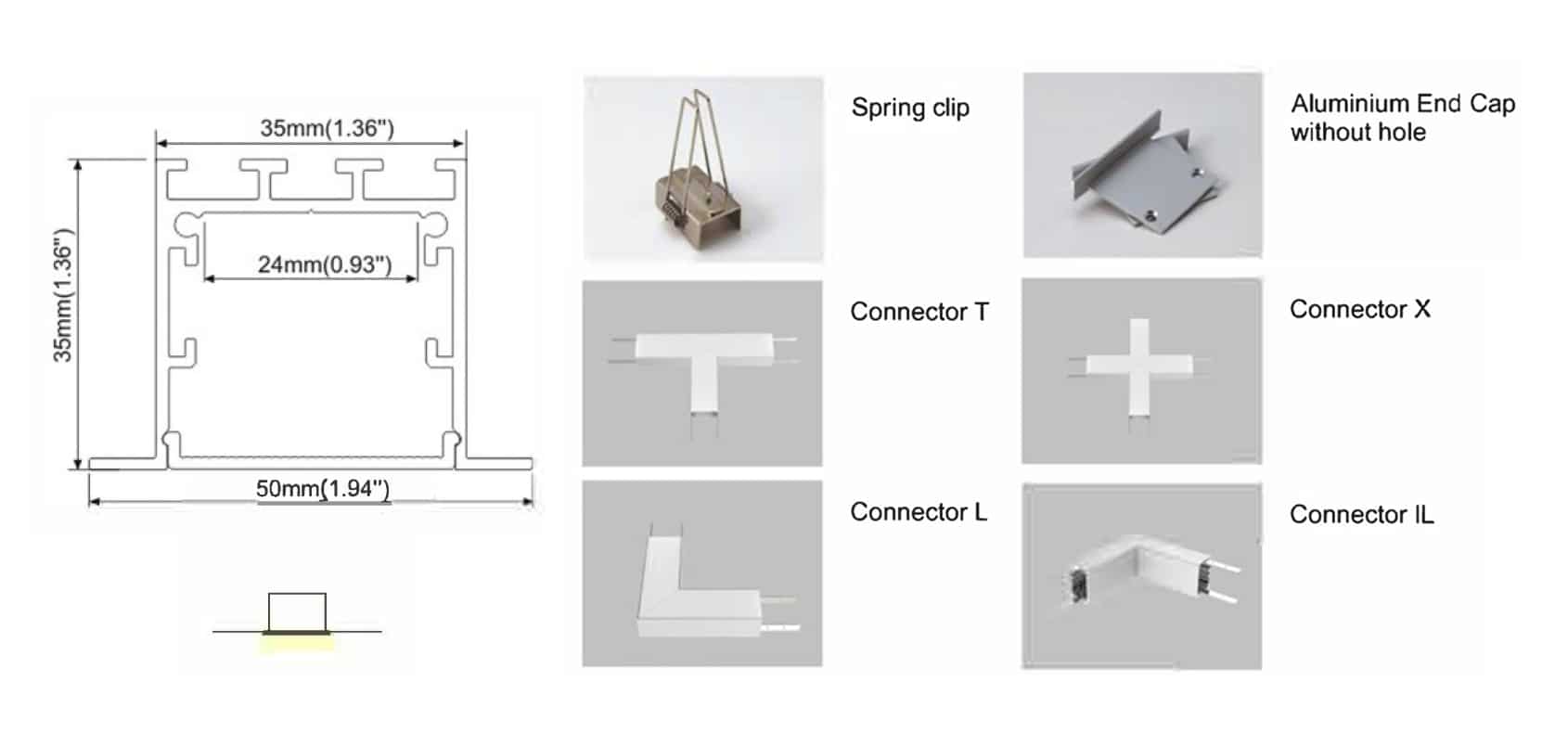

The RHEALP017-R5 aluminium profile light is a robust aluminium profile (extruded) that accommodates LED strips, shields the LED from direct view, and diffuses light to produce even, glare-free illumination. Its sizable cross-section (50 mm × 35 mm) gives designers room for high-lumen LED strips, allows for cooling, and supports long run-lengths without visible hot spots or flicker. Because it supports installations up to 3 meters, it is well suited for continuous lighting runs in coves, ceilings, walls, staircases, or other linear architectural features.Materials, finishes & aesthetics
Made from extruded aluminium, the frame comes in anodized aluminium, white, or black finishes to match or contrast with interior design elements. Diffusers are available in different options opal matte, semi-clear, or diffused polycarbonate (PC) enabling designers to select levels of light transmission, softness, and visual effect. Fittings include accessories like end caps (with or without holes), spring clips, and various connectors (T, X, L connectors) to allow flexible layouts and clean joins in continuous runs.Key technical advantages
- Thermal performance: Aluminium extrusion helps in dissipating heat effectively, which improves LED longevity and maintains consistent light output over long periods.
- Diffusers & glare control: The available diffuser options (opal, semi-clear, PC diffused) reduce glare and hotspots. This is crucial in spaces where visual comfort and lighting quality matter (offices, showrooms, hospitality, homes).
- Long continuous lengths: Up to 6 meters without visible breaks is significant for designers wanting seamless linear lighting in ceilings or feature walls.
- Modularity & ease of installation: With connectors (IL, T, X), spring clips, and end caps, the profile is designed to make installation clean, modular and adaptable whether for straight runs or complex layout geometries.
Use-cases
RHEALP017-R5 aluminium profile light is ideal for:- Ambient lighting in high ceilings, tray ceilings, or coves
- Accent lighting on walls, niches, signage or in stair-well handrails
- Under-cabinet lighting joints where continuous light is desired
- Architectural lighting in retail, galleries, showrooms where the light source needs to be discreet but uniformly luminous
| Material: | AL6063-T5 |
| IP Rating: | IP20 |
| PC Cover: | Opal/Semi-Clear/Diffused/Black |
| Accessories: | End Caps/Metal Clip/Spring Clip/T,X&L Connector |
| Size: | 1000*50*35mm (L*W*H) |
| Maximum Length: | 3000mm |
| Finish: | Anodized/White/Black |
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
