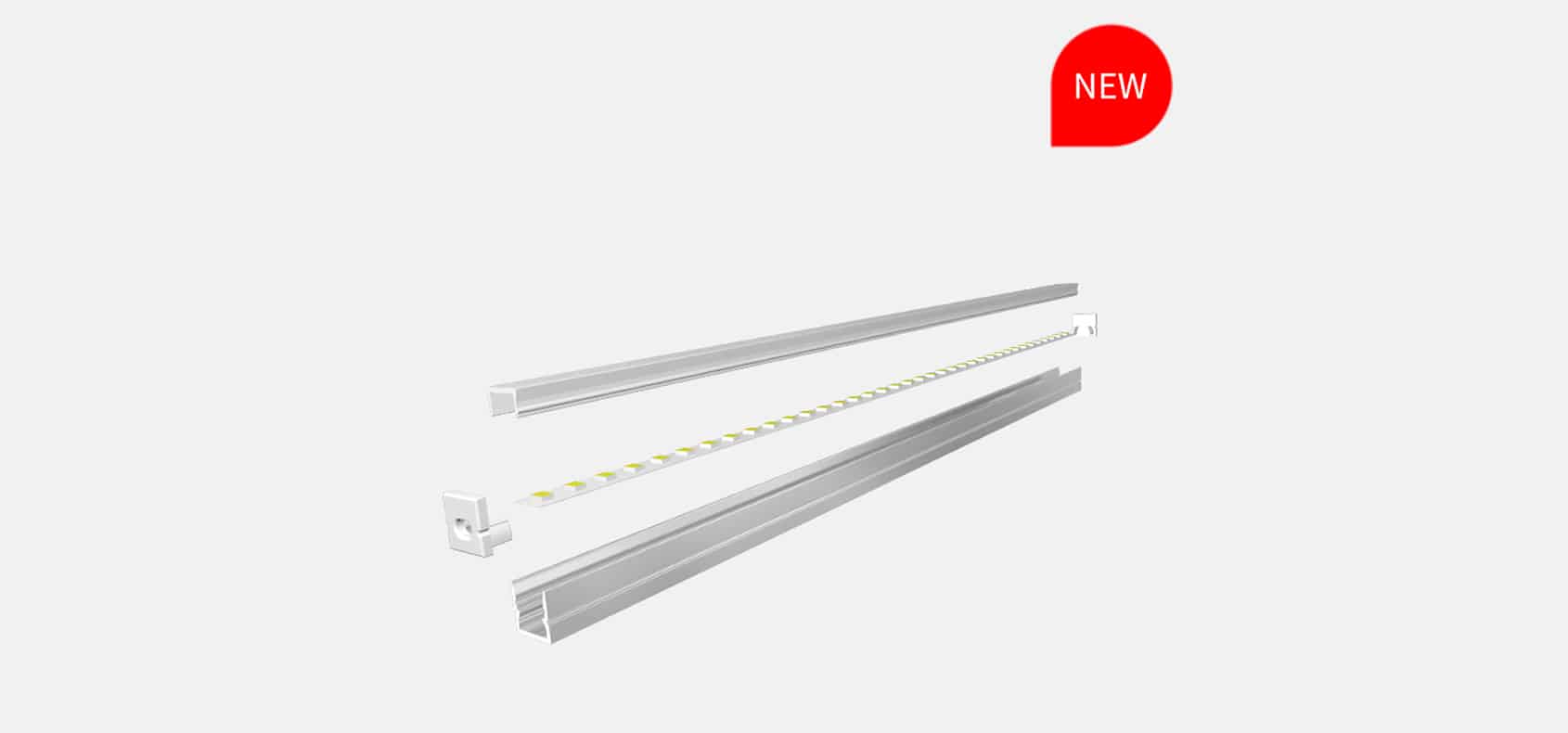

RHEALP1010C – Ultra-Slim Architectural LED Profile
The RHEALP1010C is a precision-engineered aluminum LED profile from RHEA’s Slim Line series, designed to deliver elegant, continuous linear illumination while minimizing visual bulk. With an outer cross-section of just 10 × 10 mm, it offers an ultra-discreet linear lighting solution ideal for high-end interiors, residential features, architectural niches, cove lighting, display shelving, wardrobes, and more.
Constructed from high-grade AL6063-T5 extrusion, this slim profile ensures robust structural support while providing efficient heat dissipation. Its interior is sized to fit LED PCBs (circuit boards) up to 5 mm wide, enabling compatibility with a wide range of strip light densities. The standard maximum length is 3000 mm (3 m) per continuous section, enabling long runs with minimal joints. Available finishes include silver (natural anodized), white, and black powder coat, allowing designers to integrate the profile seamlessly into interior palettes.
RHEALP1010C is compatible with a variety of diffusers (opal, transparent) and mounting accessories (clips, end caps) to deliver soft, uniform light with minimal glare and dark zones. Its narrow opening and compact size make it especially suited for architectural integrations: under floating shelves, inside rebates in wall partitions, within stair risers, or behind coves and false ceiling trims, delivering seamless linear effects while remaining largely invisible when off.
| Model | RHEALP1010 |
| Dimension | 1000x10x10 mm (L*W*H) |
| Supported LED PCB width | 5 mm |
| Maximum continuous length | 3000 mm |
| Body material | AL6063-T5 aluminum extrusion |
| Finishes available | Silver (anodized), White (powder-coat), Black (powder-coat) |
| Diffuser options | Opal PC, Transparent PC |
| Mounting accessories | Clips, connectors, end caps |
| Typical usage | Architectural linear lighting, cove, niche, wardrobe, accent lines |
| Recommended LED source | 12 V / 24 V LED strip (≤5 mm width), with matched current and thermal margin |
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
