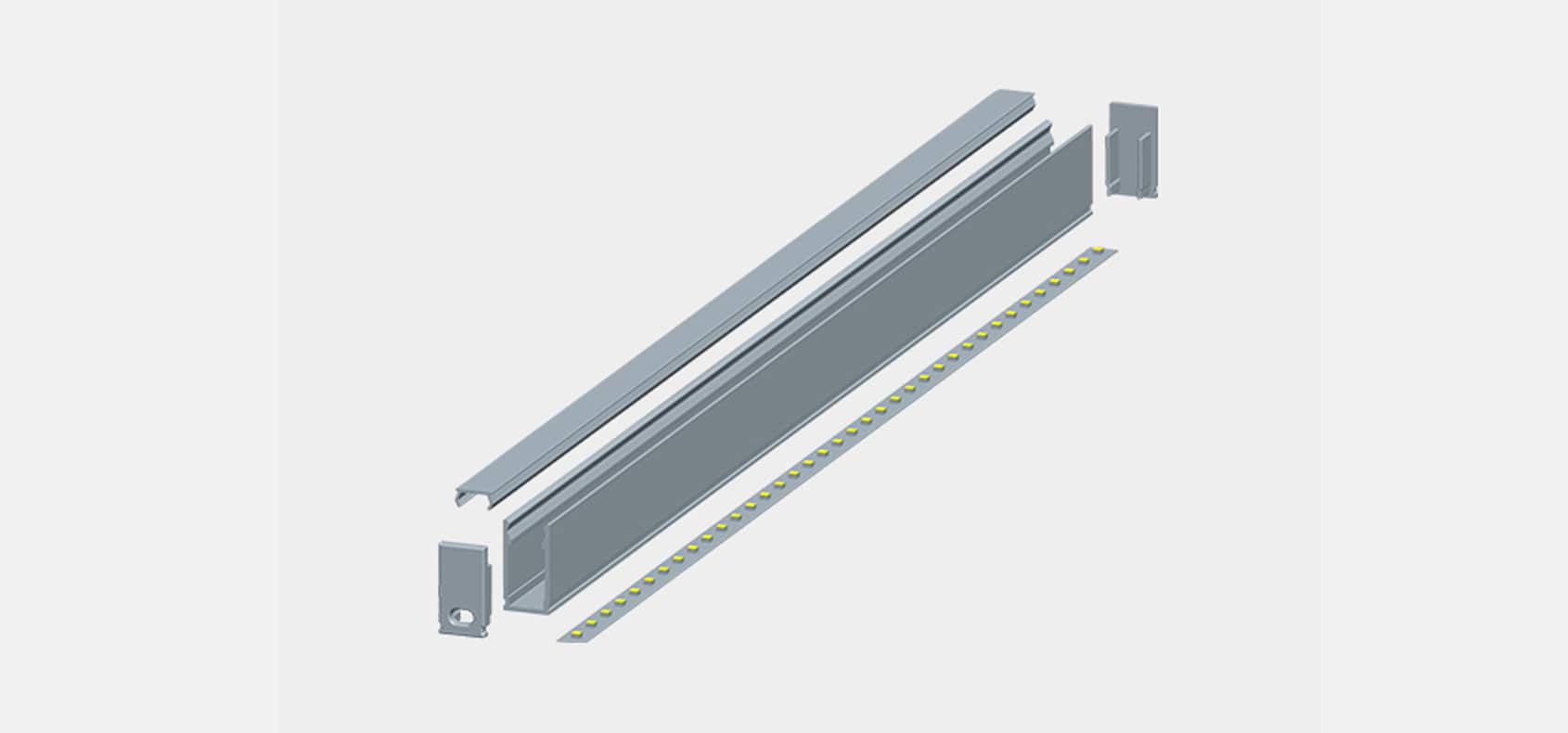

RHEALP1019 – Architectural LED Profile Light
The RHEALP1019 is a sleek, high-performance architectural LED profile lighting solution designed for seamless integration in residential, commercial, and high-end design projects. Tailored for specifiers such as home designers, architects, interior ambience creators, fit-out contractors, and lighting consultants, RHEALP1019 offers a refined marriage of form and function to elevate any interior.
Crafted from premium anodised aluminum, RHEALP1019 ensures durability, heat dissipation efficiency, and aesthetic consistency. The profile is engineered to support LED tape up to a specific width (commonly in the 8–12 mm range), giving you design flexibility. A frosted or opal polycarbonate diffuser provides smooth, glare-free light distribution and conceals individual LED points, resulting in an elegant, continuous linear lighting effect that enhances architectural lines and ambient zones.
RHEALP1019 is ideal for applications such as cove lighting, valance illumination, wall grazing, under-cabinet accents, stair riser lighting, wardrobe interiors, and feature ceiling recesses. The low-profile section allows flush mounting into ceilings, joinery, or furniture, making it nearly invisible while creating striking light effects.
Key advantages for design professionals:
- Uniform lighting — even illumination with no visible hotspots, ensuring visual comfort and design precision.
- Modular system — continuous runs and custom lengths with compatible connectors, joiners, and end caps for clean lines.
- Thermal performance — the aluminum body acts as a heat sink to maintain LED longevity and consistency over time.
- Finish flexibility — available in anodised silver, matte white, black, or custom powder-coat finishes to match architectural palettes.
- High efficacy and color fidelity — supports LED strips with high luminous output and CRI > 90+, ideal for accenting surfaces, materials, and textures.
- Ease of installation — compatible with clip mounts, suspension wiring, flush mounting, and include accessories like splice connectors and end caps for neat integration.
- Low-voltage drive — intended for DC input (commonly 24 V or similar), ensuring safety and compatibility with standard LED driver systems.

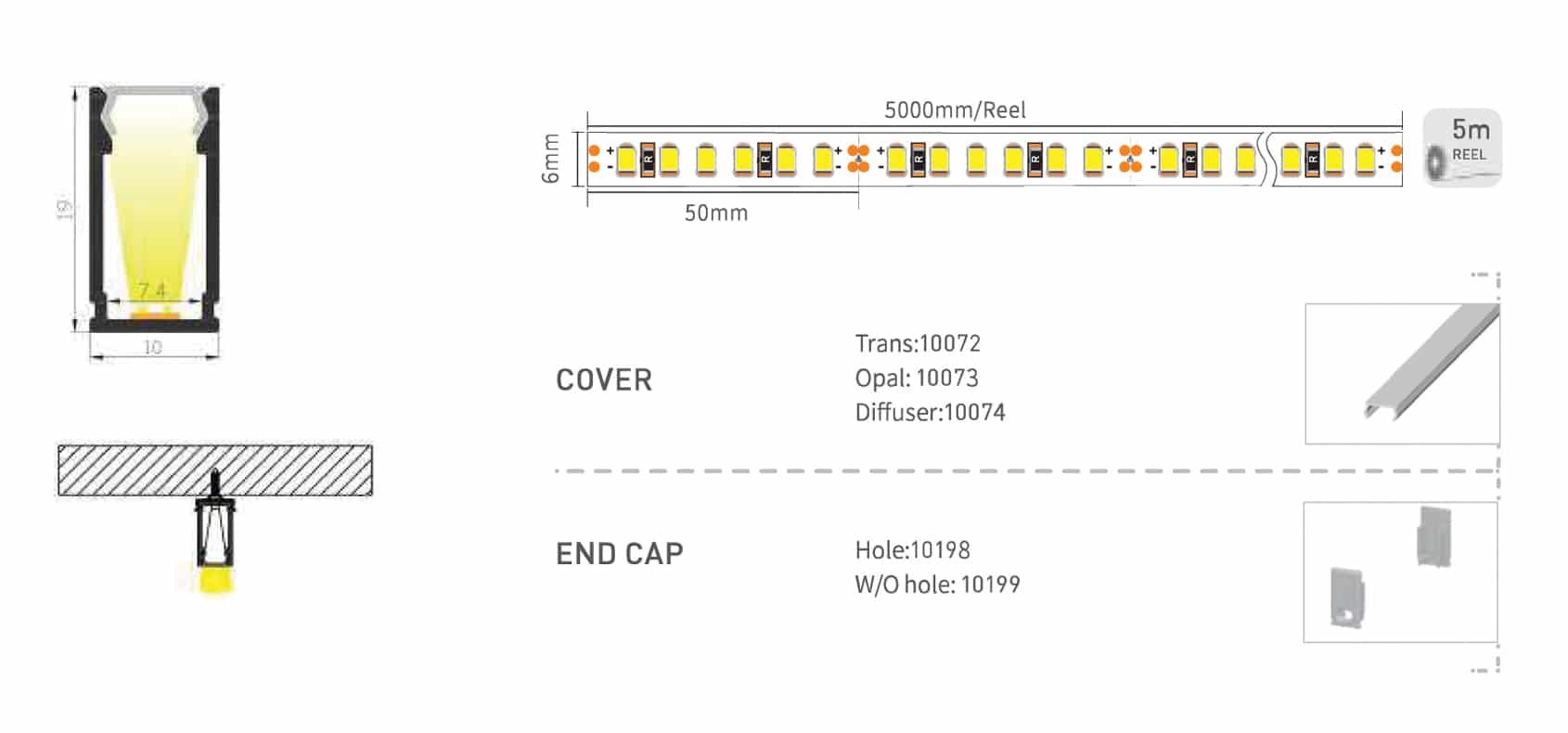

| Profile outer width | 1000x10x19 mm (L*W*H) |
| Internal aperture (for LED strip) | 8 mm |
| Maximum LED tape width supported | 6-8 mm |
| Diffuser material | Frosted / Opal polycarbonate |
| Material (body) | Anodized aluminum 6063 alloy |
| Finish options | Silver (anodized), matte white, black, custom powder coat |
| Mounting method | Surface clips, flush, suspension |
| Maximum continuous run | 3 m |
| Electrical input | Typical 24 V DC |
| Compatible driver/dimmable interface | 0–10V, PWM, DALI |
| Operating temperature range | –20 °C to +45 °C |
| Recommended ambient humidity | Up to 85% RH |
| Warranty | Typically 3–5 years |
