RHEALP1715 – Sleek Architectural LED Profile Light for Premium Interiors
The RHEALP1715 is a premium linear LED profile designed for high-end interiors and architectural lighting applications. Meticulously engineered for designers, architects, lighting consultants, fit-out contractors, and discerning homeowners, this profile module merges elegant aesthetics, high performance, and installation flexibility.

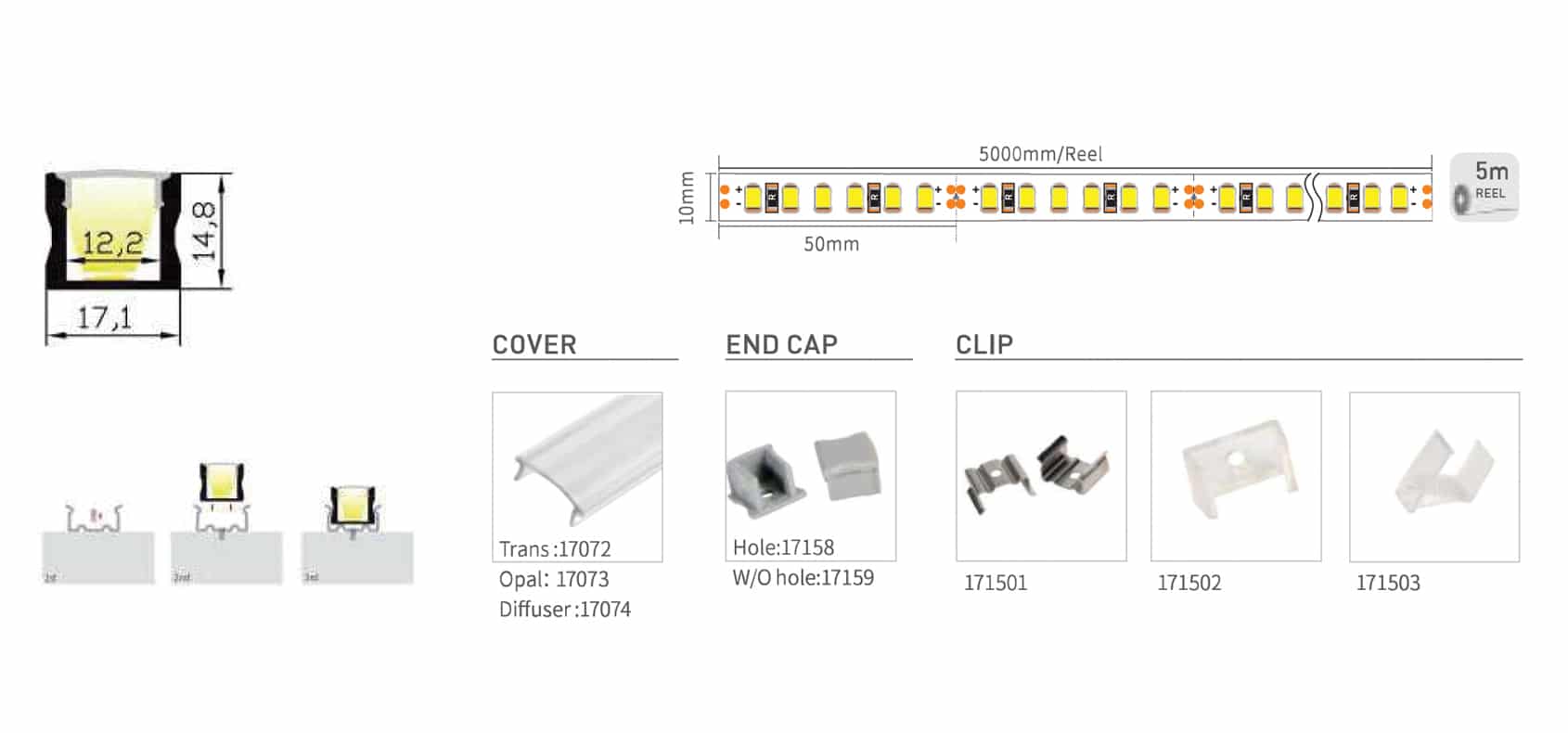

Crafted from extruded AL6063-T5 aluminum with options for anodized or powder-coated finishes, the RHEALP1715 offers durable structural support and efficient heat dissipation. A variety of polycarbonate diffusers (opal, transparent, semi-clear, or black) allow customization of light output—from softer, glare-free ambient washes to sharper accent beams—with no unsightly LED “hot spots.”
This profile supports LED strips up to 10 mm width, allowing high-density LED configurations (e.g. 120 LED/m, 2835) at up to 14.4 W/m input (24 V DC) for rich light output. Typical luminous efficacy can reach > 800–900 lm/m, with excellent color rendering (CRI ≥ 90) for accurate, pleasing hues in interior spaces.
Available in standard lengths ranging from 0.5 m up to 3 m, the RHEALP1715 can be seamlessly joined for longer runs or cut to custom dimensions to suit your project. The profile supports multiple installation methods: surface-mounted, recessed, or suspended (with accessories), enabling clean integration into ceilings, coves, cabinetry, and wall niches.
For interior designers and builders, the aesthetic finesse becomes a differentiator: the RHEALP1715 offers a slim, linear form that virtually disappears when off, yet delivers beautifully even, linear illumination when on. It is ideal for ambient cove lighting, wall grazing, ceiling ribbons, under-cabinet accents, or concealed architectural accents.
From a spec standpoint, the aluminum channel functions as a passive heatsink, extending LED life and protecting optical performance. Polycarbonate diffusers help to eliminate LED point glare and ensure uniform illumination. The modular design accommodates connectors, end caps (with or without holes), mounting clips, splice connectors, and accessories that simplify field installation.
In short, the RHEALP1715 is a sophisticated, high-performance, and reliability-focused linear LED profile system. It appeals to architects and lighting designers for its visual minimalism and performance consistency, and to contractors for its ease of use in projects. Conscientious homeowners and design-savvy clients will appreciate the seamless integration and quality of light it enables.
Key benefits at a glance:
- Elegant linear form, unobtrusive when off
- High-power handling, supports 10 mm LED strips
- Excellent heat dissipation via aluminum extrusion
- Variety of diffusers for tailored lighting aesthetics
- Modular accessories (clips, joints, end caps) for on-site adaptability
- Suitable for surface, recessed, or suspended installation
- Seamless scalability from 0.5 m to 3 m, with joinable runs
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
