Introduction & Market Positioning

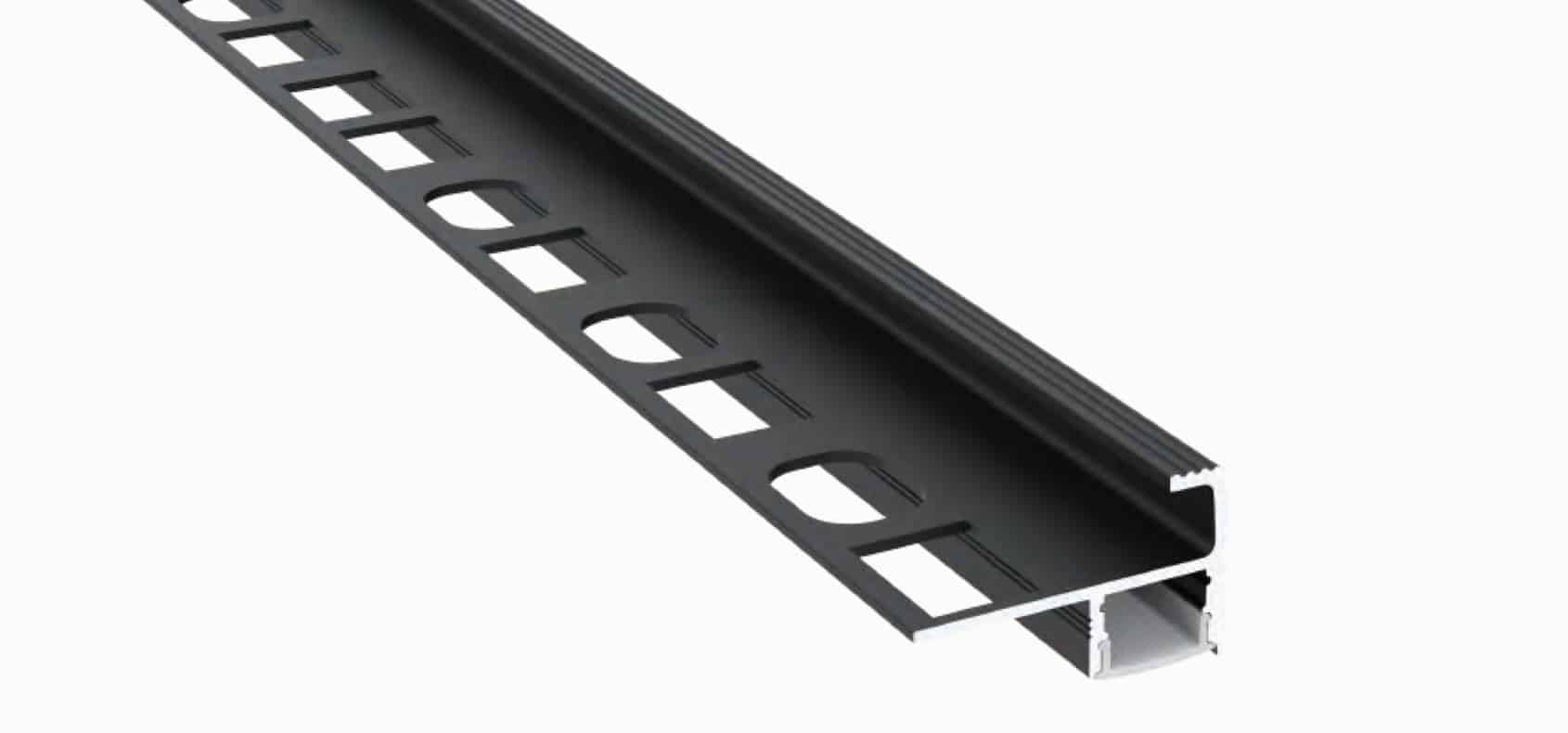

The LED Drywall Profile RHEALP184-11 linear LED profile fits smoothly into modern home and commercial lighting designs. It serves home designers, architects, lighting experts, and fit-out teams who want clean looks and steady performance. The profile offers flexible installation options, and it works well in coves, niches, ceilings, wall slots, and under furniture. As a result, it provides soft and even light while staying hidden from view.

Key Technical Features & Benefits

Extruded Aluminum Body & Heat Control

The LED Drywall Profile RHEALP184-11 uses an extruded aluminum body that pulls heat away from the LED strip. This improves the lifespan of the LEDs and keeps the light stable during long use. In addition, the anodized finish protects the profile from rust and gives it a smooth, premium look.

Dimensions & Profile Shape

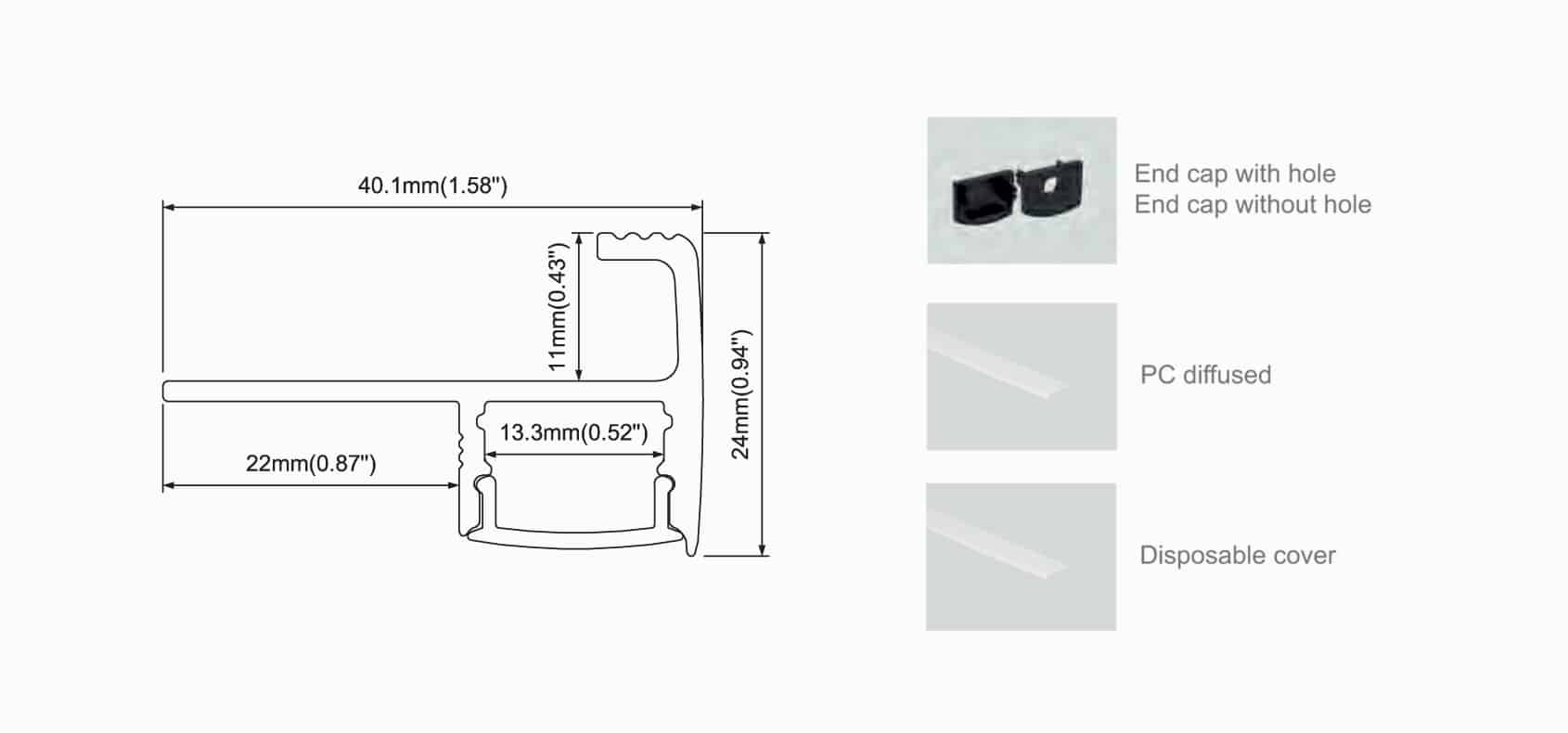

The profile comes in two sizes:

• 40.1 mm × 24 mm

• 40.1 mm × 22 mm

These sizes support strong LED strips while still allowing the profile to fit neatly into many surfaces. Therefore, the profile remains both powerful and slim.

Diffusers, Covers & Light Control

The PC P20 diffusers create soft, even light and prevent LED dots from showing through. Moreover, a thin protective film covers the diffuser during installation. You can remove this film later to keep the surface clean and clear.

Accessory Options

The RHEALP184-11 also supports a full set of accessories. These include end caps (with or without cable holes), mounting clips, and extra diffusers. Together, they help you route cables neatly, join multiple pieces easily, and install the profile in many ways.

Maximum Length

You can order the profile in lengths up to 6 meters. If you need longer runs, you can join several pieces. This setup still keeps the light smooth with very little visible change between sections.

Tile & Surface Fit

One model fits 8 mm tiles, while the other fits 10 mm tiles. Because of this, the profile sits well in tiled floors and walls, plaster areas, and recessed surfaces without extra trim pieces.

Finish Options

Finally, the RHEALP184-11 comes in two finishes: anodized aluminum and black anodized. The black finish blends well into dark ceilings or walls, and it helps create a clean, modern look.
