RLLNFSB0612 SPI PIXEL
By:
Additional information
¥0.00
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

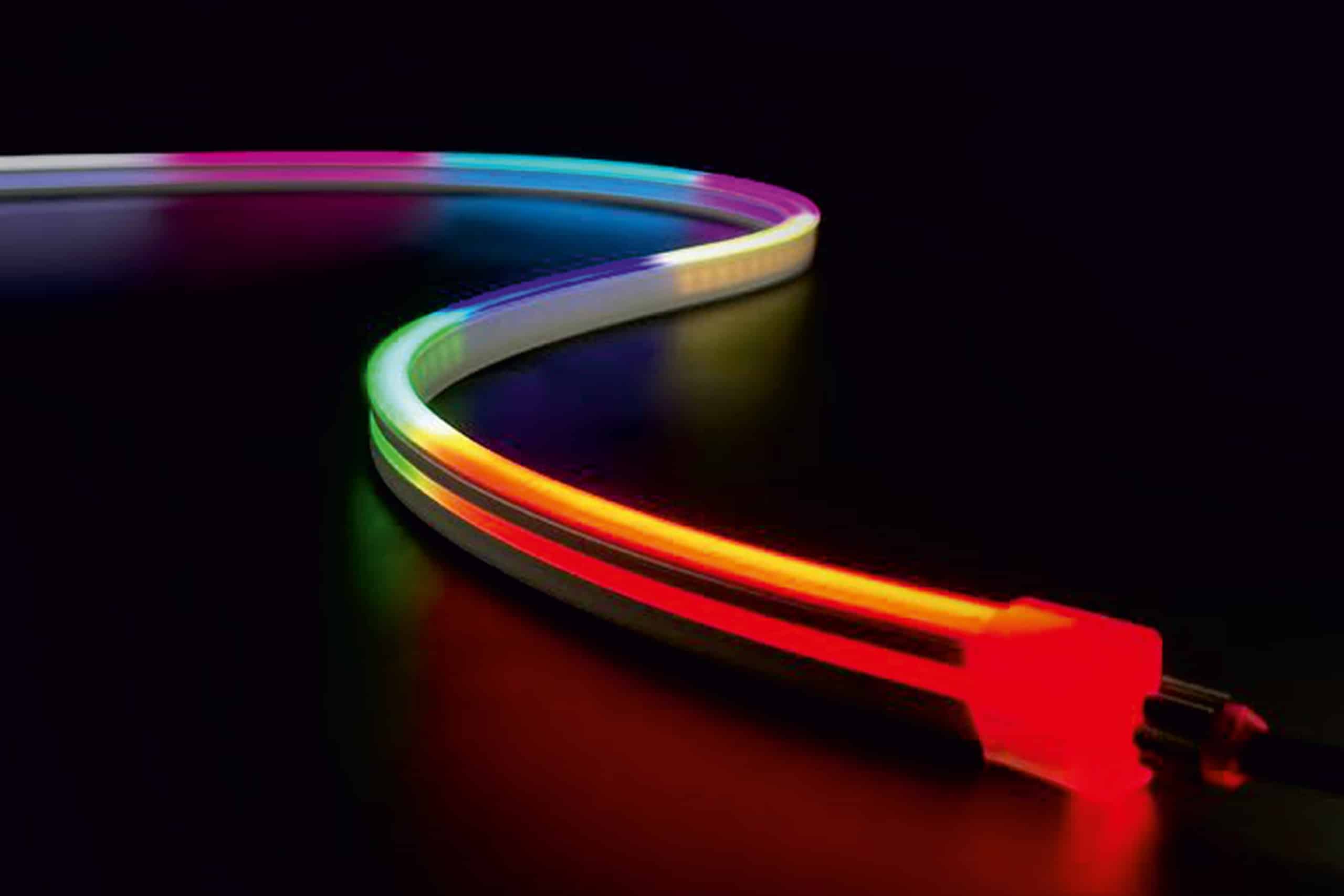

Elevate architectural lighting with the Neon Flex Side Bend Light – RLLNFSB0612 SPI PIXEL — a high-performance, pixel-addressable neon‑style LED strip that bends laterally for seamless installation in both interior and exterior spaces. Engineered for Home Designers, Architects, Interior Designers, Lighting Designers, Fit‑Out Contractors, Construction Pros, Builders, and design‑conscious individuals, this premium neon solution blends aesthetic finesse with technical excellence.
This SPI-pixel enabled Neon Flex delivers fully addressable, vibrant colored light along a 20 × 12 mm flexible silicone sheath, enabling crisp pixel effects and stunning visual dynamics. With exceptional flexibility, it wraps cleanly around lateral curves with tight radii—ideal for coves, facades, signage, and bespoke installations—while embedding effortlessly in ceiling profiles, niches, or decorative trim.
Specifications include:
- Voltage: 12 V DC SPI‑protocol control
- Pixel pitch: customizable (reference SPI pixel design specs)
- Flex dimensions: 20 × 12 mm side‑bend silicone body
- Brightness: up to ~880 lm/m, offering bright ambient and accent illumination
- High Color Rendering Index (CRI): ensures true-to-life hues
- Durability: UV, flame, saltwater resistant, rated IP68 for wet, external environments
- Operational lifespan: 36,000+ hours to L70 (typical for neon-flex silicone systems)
- Design Versatility – Clean lateral bending enables elegant, continuous lines across corners, curves, and hidden profiles.
- Custom Pixel Control – SPI protocol allows intricate lighting sequences, chases, fades, and high-resolution graphical effects.
- Architectural Grade Durability – Silicone jacket protects against UV, weather, saltwater and mechanical stress.
- Color Precision – High CRI paired with pixel control delivers vibrant, on‑brand lighting accents for retail, hospitality, residential builds.
- Energy-Efficient & Long‑Lasting – LED system ensures low heat, energy savings, and L70-rated longevity.
Technical Features (Bulleted)
- Dimensions: 20 mm (W) × 12 mm (H) silicone jacket
- Bending: Side-lateral bendability, min radius ~200 mm
- Voltage & Control: 12 V DC via SPI for pixel-addressable animation
- Pixel Pitch: Customizable (e.g. 20–100 mm), per spec sheet
- Brightness: 195–880 lm/m (multi-watt options)
- CRI: ≥90
- Ingress Protection: IP68 (full waterproof)
- Durability: UV, flame, saltwater resistant
- Cuttable Zones: Every pixel (customizable)
- Operating Range: −25 °C to +55 °C
- Lifetime: >36,000 h L70
- Certifications: UL/CE compliant
- Installation Accessories: IP68 connectors, mounting extrusions for recessed/surface applications
The Neon Flex Side Bend Light – RLLNFSB0612 SPI PIXEL is a lateral‑bend, pixel‑addressable silicone neon. It’s built for design flexibility—both literally and creatively. With full SPI pixel control and a luminous output up to ~880 lm/m, it empowers professionals to sculpt light in curved coves, architectural reveals, decorative trim, signage, ceilings, stair volumes, façade outlines, and bespoke feature lighting.
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
