EST-FS3528C-120-24-Y(3D)
By:
Additional information
$0.00
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

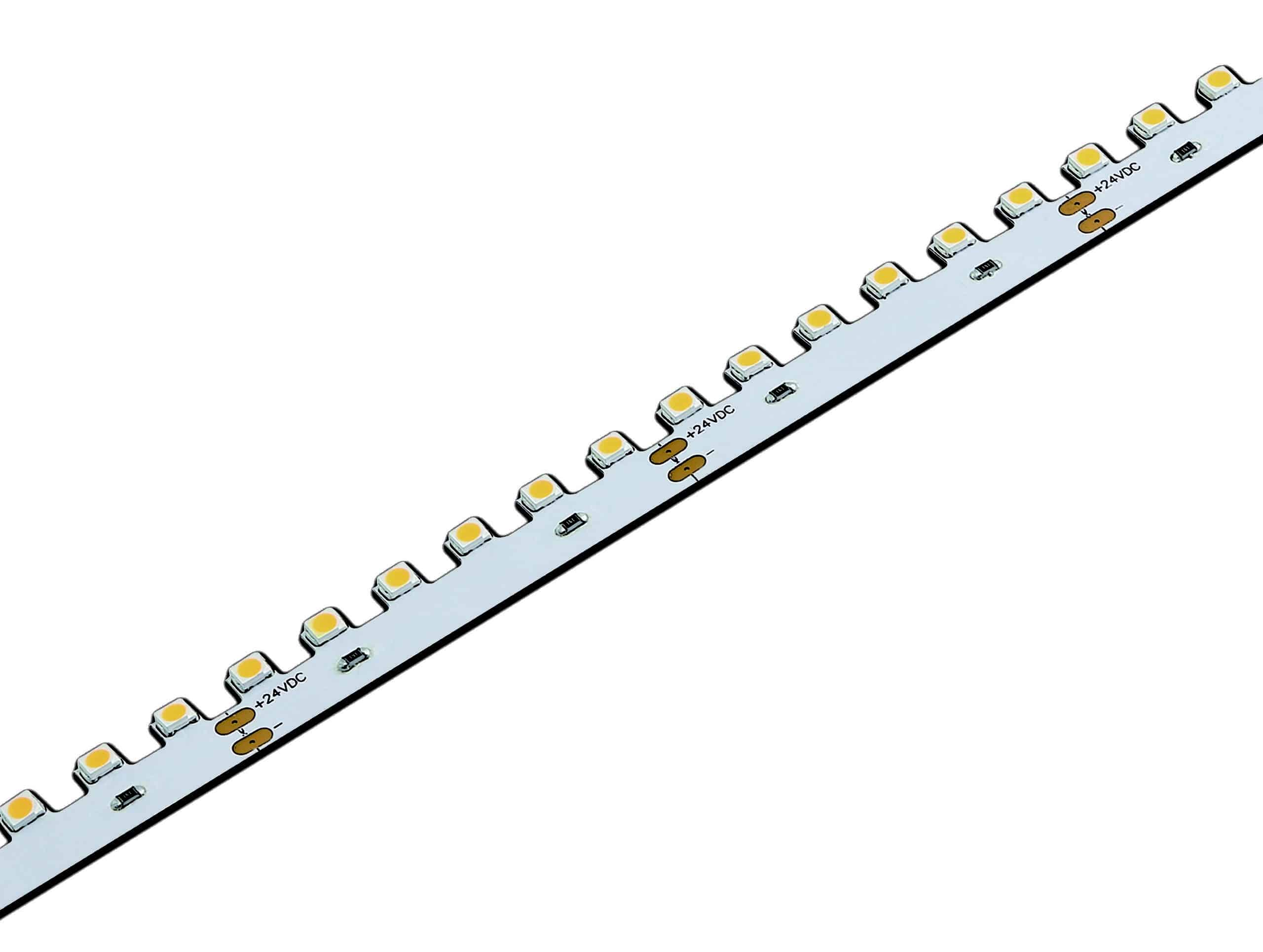

3D bendable LED strip for profile ring lights and arc lighting

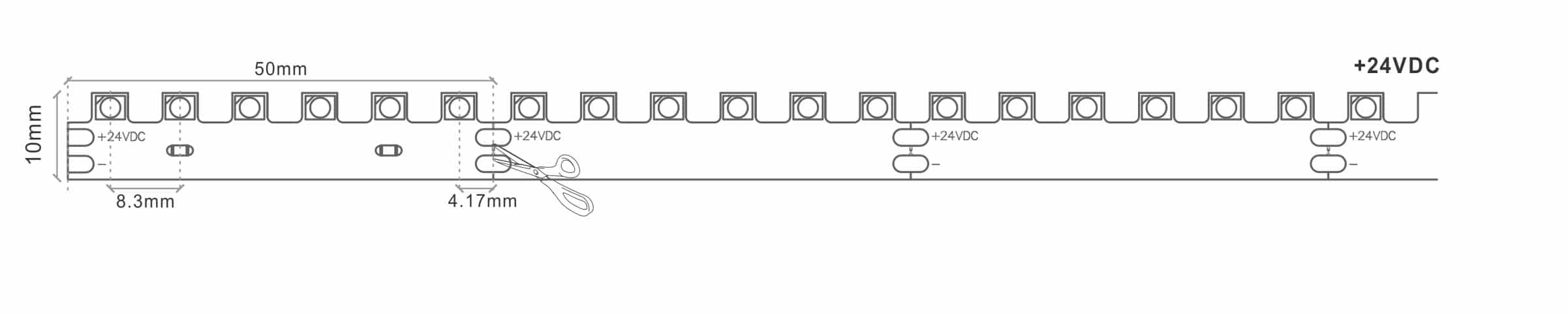

3D bendable LED strip for profile ring lights, arc lighting, LED ring light and circle light with high CRI output. The 3D Bendable LED strip has a very unique quality, unlike regular strips, one can fold & flex these strips in many directions. Folding these strips in many directions can also create limitless lighting possibilities. These are best for 90-180 bend applications. They can be applicable for a variety of indoor and outdoor lighting applications and come with IP20 and IP67 protection. Our 3D bendable LED strip lights will certainly provide a unique and creative lighting solution that will take your project to the next level. One of the major applications for these strips are in profile ring lights. They can also create various arc lighting, circle light effects and architectural office lighting. Our LED strips produce a CRI of more than 90 which is considered to be the best standards in terms of light output. With a wattage of 9.6W/m, they produce lumens of 740-780lm/m for color temperature of 2700K, 3000K, 3500K, 4000K and 5000K. These strips can be cut every 50MM to suit any customized lighting needs. Some of the high lights are as follows:| MODEL | COLOR TEMPERATURE | LM/M | POWER/M | LIGHT EFFICIENCY | CRI (RA) | FPC |
|---|---|---|---|---|---|---|
| EST-FS2835WWC-120-24-Y | 1800K | 672LM | 9.6W | 70LM/W | 94+ | 3OZ |
| EST-FS2835WWC-120-24-Y | 2100K | 672LM | 9.6W | 70LM/W | 94+ | 3OZ |
| EST-FS2835WWC-120-24-Y | 2300K | 749LM | 9.6W | 78LM/W | 94+ | 3OZ |
| EST-FS2835WWC-120-24-Y | 2700K | 816LM | 9.6W | 85LM/W | 94+ | 3OZ |
| EST-FS2835WWC-120-24-Y | 3000K | 816LM | 9.6W | 85LM/W | 94+ | 3OZ |
| EST-FS2835WWC-120-24-Y | 3500K | 845LM | 9.6W | 88LM/W | 94+ | 3OZ |
| EST-FS2835NWC-120-24-Y | 4000K | 864LM | 9.6W | 90LM/W | 94+ | 3OZ |
| EST-FS2835NWC-120-24-Y | 5000K | 864LM | 9.6W | 90LM/W | 94+ | 3OZ |
| EST-FS2835NWC-120-24-Y | 6500K | 864LM | 9.6W | 90LM/W | 94+ | 3OZ |
| CRI: | CRI > 90+ |
| RA: | Ra 90+. RA94 also available |
| Color Temp: | 2700K, 3000K, 3500K, 4000K, 6500K |
| Input Voltage: | 12/24VDC |
| IP Grade: | IP20 & IP67 |
| LED Quantity per meter: | 120 |
| Wattages: | 9.6W |
| Light Efficiency: | 81.25 lumens/watt |
| Lumen Output/meter | 780 Lumens/meter |
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
