EST-FS2216C-112H-24-Y
By:
Additional information
0,00 $
📥 Download Catalog
Ready for delivery in 4–5 weeks

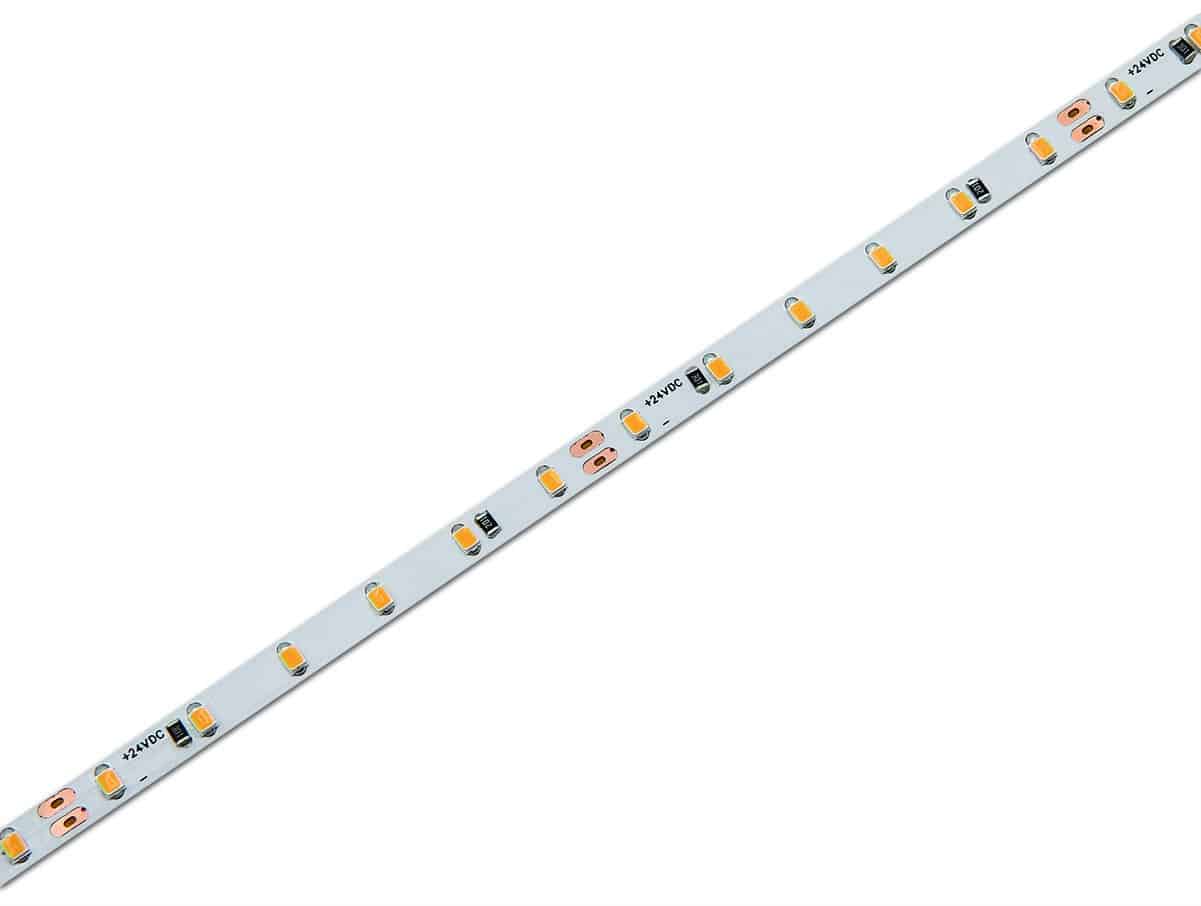

Super slim strip light for linear niche lighting and LED tape lighting
Super slim strip light for linear niche lighting, LED tape lighting, Strip ringlight and strip light fittings with SMD 2216 LED. The color temperature ranges from 1800K to 6500K. These super slim linear lights are an ideal choice when it comes to decorative lighting in corners and wall edges. LEDs used in the strips are SMD 2216 and comes with 112/120/180/182/264/266 LEDs per meter depending on the need. The wattage of these LED strips is 7.2W/9W/12W per meter depending on the lumens required. With its slim profile and powerful performance, this 4mm LED strip is perfect for narrow spaces such as wardrobes or under cabinet lighting. The lumens output ranges from 1100-2691 LM/mtr depending on the CCT and wattage. We have a wide range of narrow profiles for architectural linear lighting applications. Integrating these strips into those profiles will create a sophisticated lighting solution for various indoor and outdoor applications. The standard length available for the strip light is 5mtrs with an option to customize as well. Some of the high lights are as follows:| MODEL | COLOR TEMPERATURE | LM/M | POWER/M | LIGHT EFFICIENCY | CRI (RA) | FPC |
|---|---|---|---|---|---|---|
| EST-FS2216WW-112H-24-Y | 1800K | 570LM | 7.2W | – | 90+ | 3OZ |
| EST-FS2216WW-112H-24-Y | 2100K | 600LM | 7.2W | – | 90+ | 3OZ |
| EST-FS2216WW-112H-24-Y | 2300K | 600LM | 7.2W | – | 90+ | 3OZ |
| EST-FS2216WW-112H-24-Y | 2700K | 620LM | 7.2W | – | 90+ | 3OZ |
| EST-FS2216WW-112H-24-Y | 3000K | 620LM | 7.2W | – | 90+ | 3OZ |
| EST-FS2216WW-112H-24-Y | 3500K | 620LM | 7.2W | – | 90+ | 3OZ |
| EST-FS2216NW-112H-24-Y | 4000K | 680LM/td> | 7.2W | – | 90+ | 3OZ |
| EST-FS2216NW-112H-24-Y | 5000K | 680LM | 7.2W | – | 90+ | 3OZ |
| EST-FS2216PW-112H-24-Y | 6500K | 680LM | 7.2W | – | 90+ | 3OZ |
| CRI: | CRI > 94 & >97 |
| RA: | Ra 94+. RA97 also available |
| Color Temp:/td> | 1800K, 2100K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K/td> |
| Input Voltage: | 12/24VDC |
| IP Grade: | IP20-IP68 |
| LED Quantity per meter: | 30, 60, 112, 120, 176, 180, 240 |
| Wattages: | 7.2W, 9W, 12W |
| Light Efficiency: | 106-120 lumens/watt |
| Lumen Output/meter | 1100-2691 Lumens/meter |
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
