EST-FS5630C-180-24-Y
By:
Additional information
0,00 $
📥 Download Catalog
Ready for delivery in 4–5 weeks

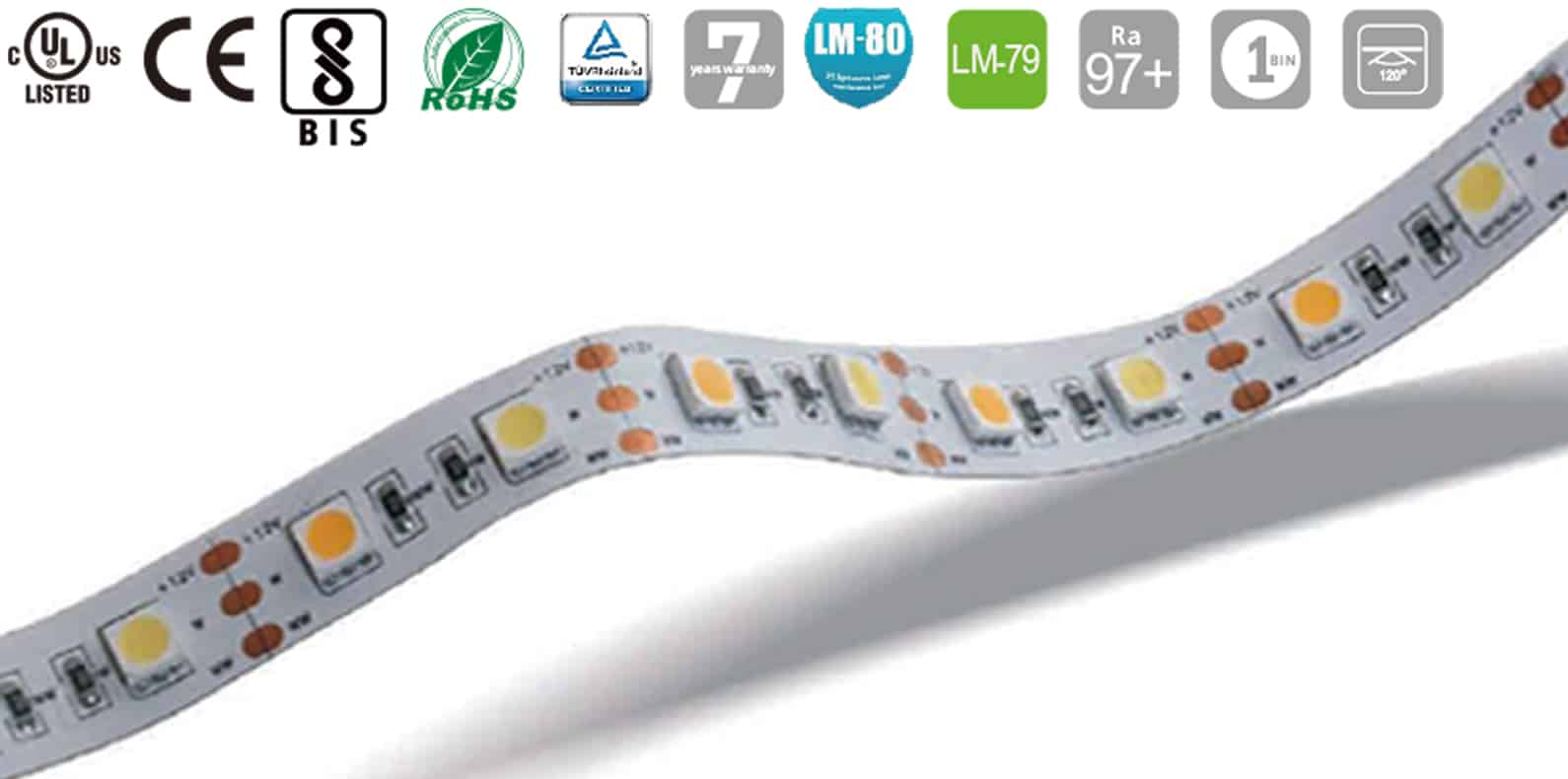

High lumens strip light for white shaker cabinet lighting
High lumens strip light for white shaker cabinet lighting, under counter lighting, interior project design and bedroom floor lighting. If you’re looking for a modern lighting solution that will add a touch of class to any space, high-grade linear lights are a great option. These lights are perfect for both commercial and residential projects, and can be used as either a functional or decorative element. The high lumens LED strip produces 1400-3700 Lumens/meter and has a light efficiency of 100-200 lumens/watt. SMD 5630 LEDs are used for these strips which offer CCT of 1800K – 6500K with different wattage options such as 9.6W, 10W, 14.4W and 23W. Whether you’re looking to install them in a recessed profile to create wall lighting or walkover lighting, our strips are strong and will evenly spread the light emitted. LED strip lights are new and versatile forms of lighting. They are available in a wide range of fixed and variable color and brightness. Additionally, our high lumens strips have been used in a variety of beautiful architectural lighting solutions around the world. So whether you’re looking for cove lighting, wall lighting or under cabinet lighting, our products will not disappoint. Some of the high lights are as follows:| MODEL | COLOR TEMPERATURE | LM/M | POWER/M | LIGHT EFFICIENCY | CRI (RA) | FPC |
|---|---|---|---|---|---|---|
| EST-FS5630WW-180-24-Y | 2700K | 3264LM | 19.2W | 170LM/W | 80+ | 3OZ |
| EST-FS5630WW-180-24-Y | 3000K | 3456LM | 19.2W | 180LM/W | 80+ | 3OZ |
| EST-FS5630NW-180-24-Y | 4000K | 3840LM | 19.2W | 200LM/W | 80+ | 3OZ |
| EST-FS5630NW-180-24-Y | 5000K | 3744LM | 19.2W | 195LM/W | 80+ | 3OZ |
| EST-FS5630PW-180-24-Y | 6500K | 3684LM | 19.2W | 192LM/W | 80+ | 3OZ |
| SMD Type: | SMD5630 |
| RA: | Ra >90+ >97 also available |
| Color Temp: | 1800K, 2100K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| Input Voltage: | 12/24VDC |
| IP Grade: | IP20-IP68 |
| LED Quantity per meter: | 60, 64, 72, 112, 126, 180, 224 |
| Wattages: | 9.6W, 10W, 14.4W, 23W |
| Light Efficiency: | 100-200 lumens/watt |
| Lumen Output/meter | 1400-3700 Lumens/meter |
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
