Fixed Spot Light: FS1267A-10
By:
Additional information
0.00 ¥
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

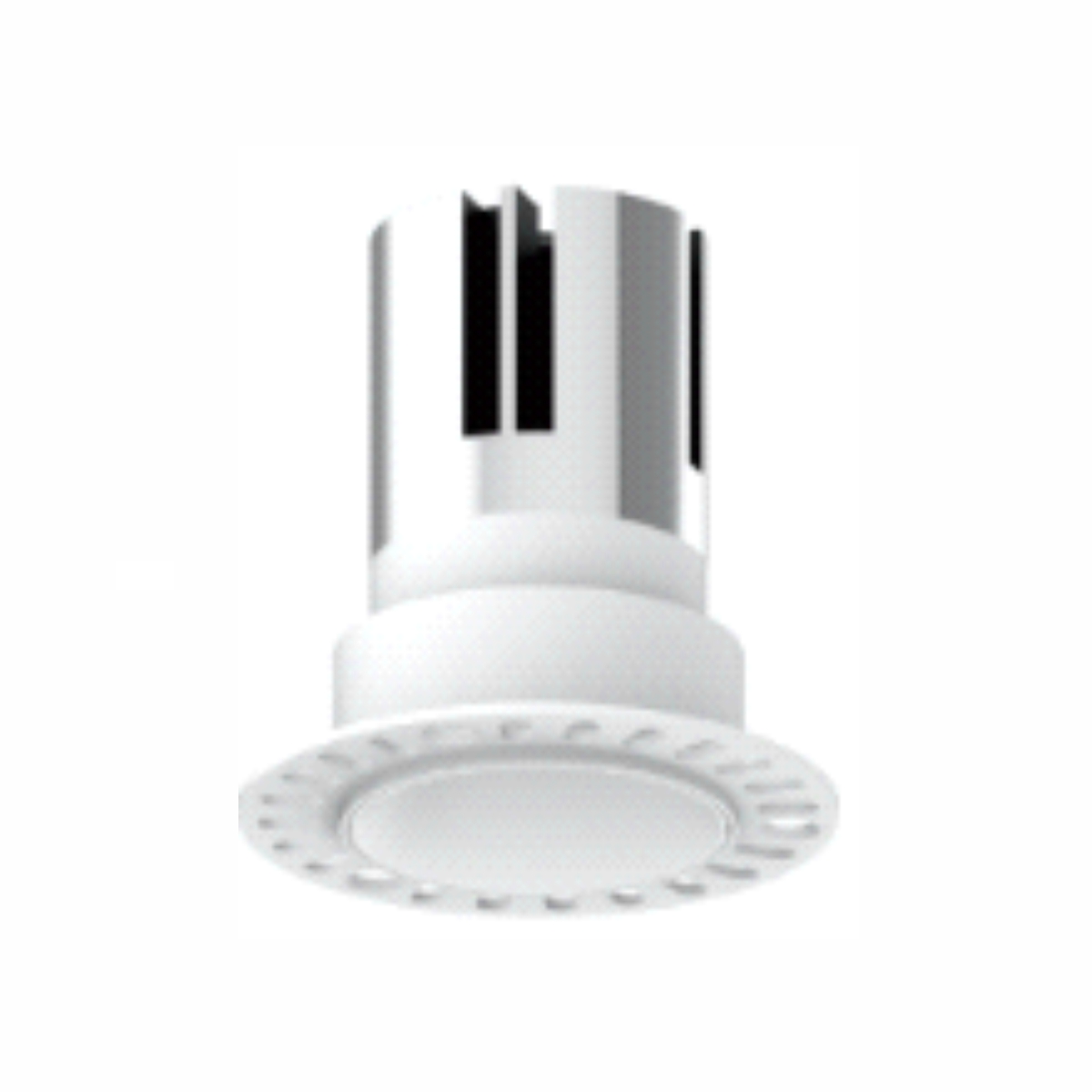

The Indoor Fixed Spot Light: FS1267A-10 is a sleek, recessed LED luminaire engineered for precision lighting in residential and commercial interiors. Engineered with a compact diameter of Ø55 mm and a height of 80 mm, it requires just a 50 mm ceiling cut-out—perfect for minimalist design schemes (rhealedlinear.com).
At up to 10 W max, the FS1267A‑10 houses a high-performance Luminus COB LED that projects crisp illumination in selectable beam angles of 15°, 24°, 36°, or 50°, enabling designers to craft atmospheres from intimate to expansive. Powered by an external driver (AC 220–240 V to DC 250 mA), it ensures consistent output with enhanced thermal efficiency (rhealedlinear.com).
Ideal for corridor accenting, display highlight, and task lighting, the Indoor Fixed Spot Light: FS1267A-10 blends form and function. Precision-engineered housing keeps light focused and reduces glare—an essential for lighting designers, architects, and interior fit‑out specialists. Whether spotlighting art, architectural features, kitchen counters, or retail displays, this fixture integrates seamlessly with clean-line ceilings.
The rugged aluminum construction meets rigorous commercial standards and supports fast, trouble-free installation. Its compact profile and recessed design give ceilings a clutter-free look, vital for modern, minimalist interior design. External drivability enhances flexibility in installation layout, making it easy for lighting installers and electricians to integrate into project plans.
For builders and contractors engaged in large-scale fit-outs, the FS1267A‑10 offers project scalability with consistent performance and easy sourcing. Its external driver allows multiple fixtures to be daisy-chained, simplifying cable runs and reducing installation complexity.
In summary, the FS1267A‑10 combines:
- Compact ∅55 × 80 mm recessed form
- 10 W COB LED with selectable beam angles (15°, 24°, 36°, 50°)
- External AC‑DC driver (220–240 V → 250 mA constant current)
- High-efficiency, low-glare lighting for design-driven environments
Technical Features

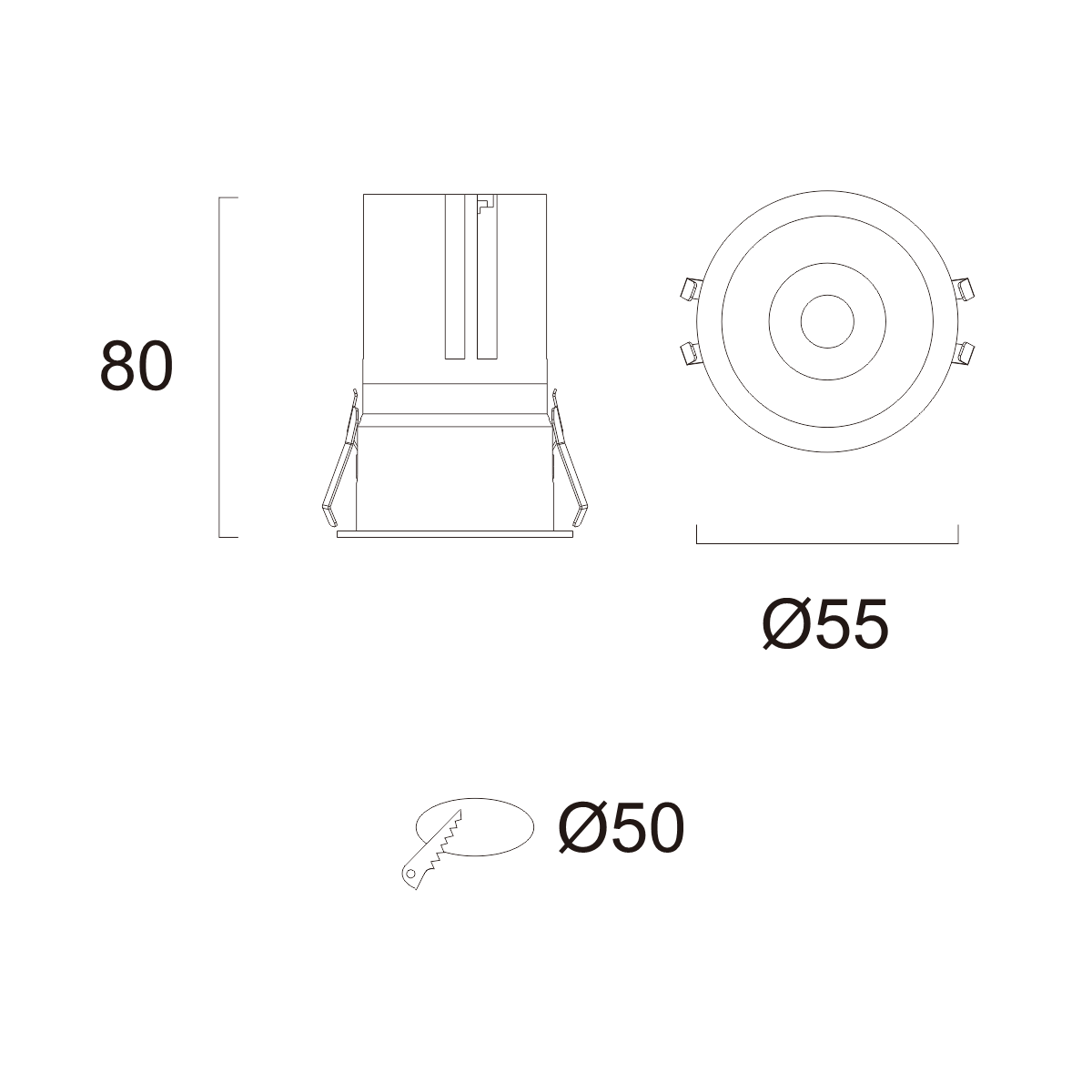

- Compact Size: Ø55 × 80 mm housing, 50 mm cut-out
- Power Consumption: Up to 10 W max, high lumen efficacy LED with minimal energy use (rhealedlinear.com)
- LED Engine: High-performance Luminus COB LED—bright, even output, and long lifespan
- Beam Angle Options: 15°, 24°, 36°, 50° for diverse lighting strategies
- Driver: External AC 220–240 V to DC 250 mA constant‑current—supports multiple fixtures
- Installation: Recessed, spring-clip assembly for fast ceiling mounting
- Housing Material: Durable aluminum for thermal management and structural strength
- Certifications: (add when available: CE, RoHS etc.)
Benefits & Applications
For Designers & Architects- Enables refined ceiling aesthetics with concealed lighting
- Spot or wash beam flexibility supports various visual compositions
- High CRI (assumed) enhances material and color rendering
- External driver simplifies cable runs, reduces thermal load in ceiling void
- Snap-in fixture for efficient installation and maintenance
- Scalable for corridor, showroom, hospitality or residential projects
The Indoor Fixed Spot Light: FS1267A-10 is a compact, recessed LED spot light engineered for minimalist interiors and precision lighting applications. With a diameter of Ø55 mm, height 80 mm, and requiring only a 50 mm ceiling cut-out, it’s designed for seamless ceiling integration (rhealedlinear.com). Its low-profile form ensures a clean, modern ceiling aesthetic ideal for designers and fit-out contractors.
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
