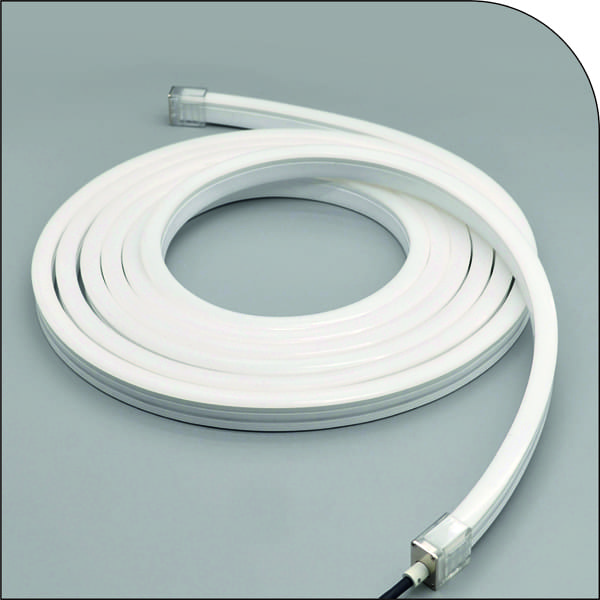

Neon Flex Side Bend Light – RLLNFSB1220H is a high-performance LED neon flex designed for innovative lighting design. Crafted with architectural precision, this side-bendable neon is ideal for Home Designers, Architects, Interior Designers, Fit‑Out Contractors, Lighting Designers, Construction Professionals, Builders, and design-conscious individuals who demand seamless, elegant linear lighting. Its sleek 12 mm width and 20 mm height allow ultra-slim installations, while its flexible side-bend profile opens new possibilities in coves, edges, ceiling outlines, niche detailing, backlit panels, furniture accenting, signage, and more.
🛠Key Technical Features
- Side-bendable (lateral) construction with 12 mm × 20 mm profile for creative freedom.
- Smooth, dot-free illumination—no visible hotspots.
- Available in single-color, tunable-white, RGB, and RGB + W options.
- High Color Rendering Index (CRI ≥ 90+) for accurate, vibrant color reproduction—ideal for showcases, galleries, retail, and luxury interiors.
- Robust ratings: IP65–IP68 for outdoor durability; UV, salt‑water, flame, acid, and alkali resistance, as corroborated by similar models (linearlux.com.au, unitopledstrip.com, est.net.in).
- 24 V DC input, cuttable at 50 mm intervals for precision layouts, with max lengths from 5–16 ft per run/export options (superbrightleds.com).
- Energy efficiency: ~3–12 W/m (varies by variant), delivering up to ~36–103 lm/ft brightness (americanlighting.com).
- Estimated lifespan ≥ 50,000 hrs; dimmable via PWM, ELV, TRIAC, or DMX controls.
🎨 Benefits in Design & Construction
- Design versatility: Perfect for curves, architectural accents, recessed ceilings, niche shelving, wardrobe features, undercabinet glow, signage, and façade outlines.
- Safety & durability: Silicone/PVC housing is rugged, shatter-resistant, UV-challenged, and submergible—ideal for residential and commercial environments.
- Professional-grade quality: OEM-manufactured to exacting specifications—warranty-backed (typically 3–5 years) with cULus, UL, CE & RoHS compliance (americanlighting.com, step1dezigns.com).
- Easy installation: Attach via mounting clips, aluminum profiles, or bendable channels. Frequently used by contractors and interior fit-out teams (unitopledstrip.com).
Technical Specifications
| Spec | RLLNFSB1220H Details |
| Dimensions | 12 mm (W) × 20 mm (H) |
| Bend Type | Side‑bend (flex on narrow side) |
| Voltage | 24 V DC |
| Power Consumption | 3–12 W/m (depending on variant) |
| Cut Length | 50 mm increments |
| Brightness | Varies—up to ~103 lm/ft for static white (americanlighting.com) |
| Color Options | Single White, Tunable White, RGB, RGB + W |
| CRI | ≥ 90 (high fidelity color) |
| Beam Angle | ~160° lateral spread |
| IP Rating | IP65–IP68—waterproof, UV, salt/alkali, flame resistant |
| LED Life | ≥ 50,000 hours |
| Certifications | UL/cUL, CE, RoHS compliant |
| Dimmability | Compatible with PWM, ELV, TRIAC, DMX |
| Warranty | 3–5 years typical |
Design & Installation
- Side Bend Capability: Enables lateral curves with tight radii, ideal for rounded coves, corners, room perimeters.
- Mounting Versatility: Compatible with aluminum profiles, bendable tracks, and clip mounts. Profiled systems help maintain shape and allow tool-free mounting (superbrightleds.com, unitopledstrip.com).
- Cut-to-Fit: Customizable lengths (cut marks at 50 mm) simplify installation—especially in coves, signage, and graphic backlighting.
- Accessory Support: Works with end caps, connectors, mounting clips, and bendable channels; recommended to use proper silicone glue for sealing cuts.
Neon Flex Side Bend Light – RLLNFSB1220H is a cutting-edge linear LED neon with a slim profile (12 × 20 mm) engineered for side‑bend flexibility. It enables luminous curves along walls, coves, ceilings, shelves, and more, offering smooth, uniform light without hot spots.
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
