RHEALP114
By:
Additional information
¥14.06
The prices shown are for retail purchases only. For bulk orders, project requirements, or wholesale pricing, please contact us with your quantity details to receive a tailored quotation
📥 Download Catalog
Ready for delivery in 4–5 weeks

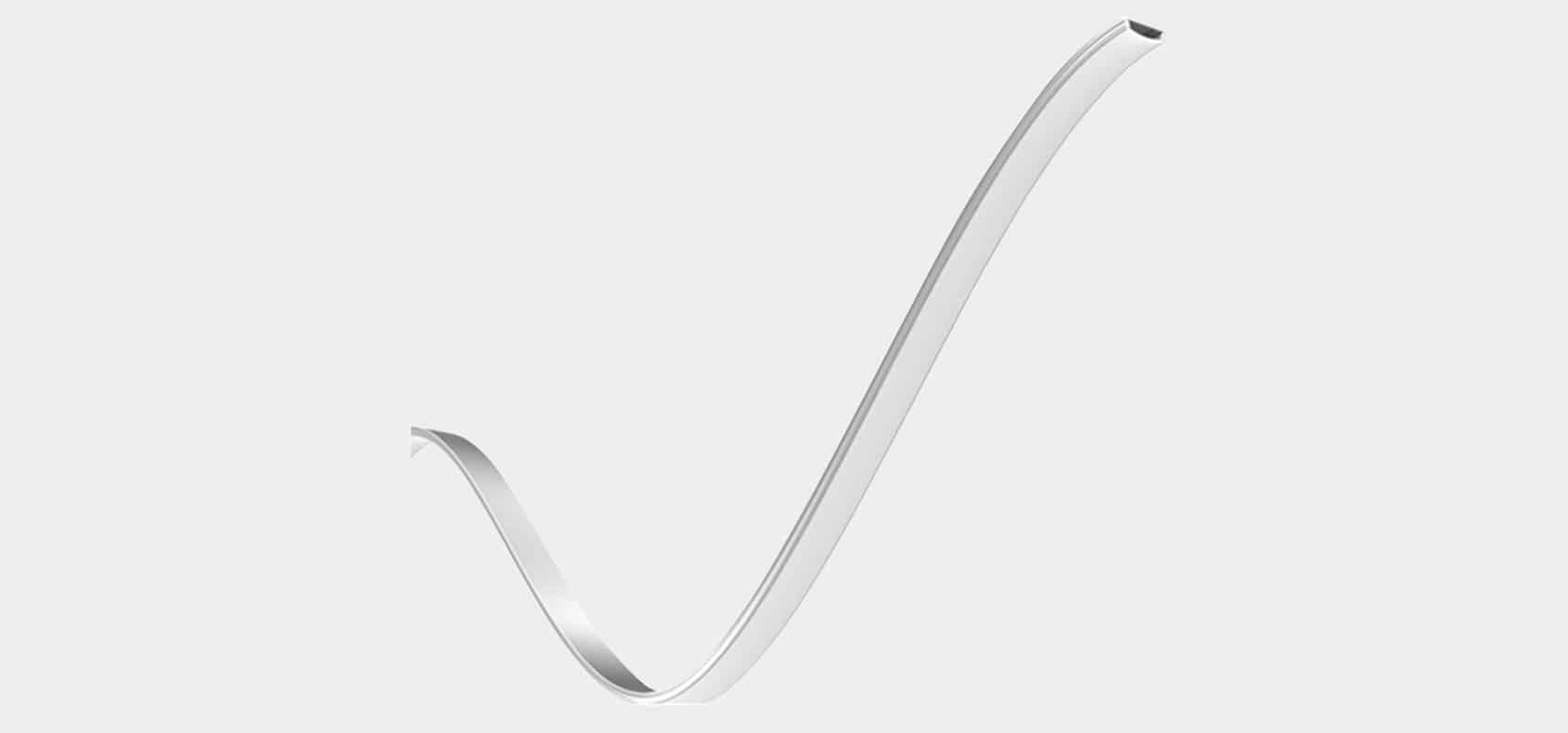

The RHEALP114 is a sleek, high-performance LED aluminum extrusion profile engineered for seamless linear lighting integration in contemporary interiors. Designed with precision, it appeals directly to home designers, architects, interior specialists, fit-out contractors, lighting designers, and discerning homeowners who demand refined aesthetics and functional performance.
Key Technical Features & Advantages

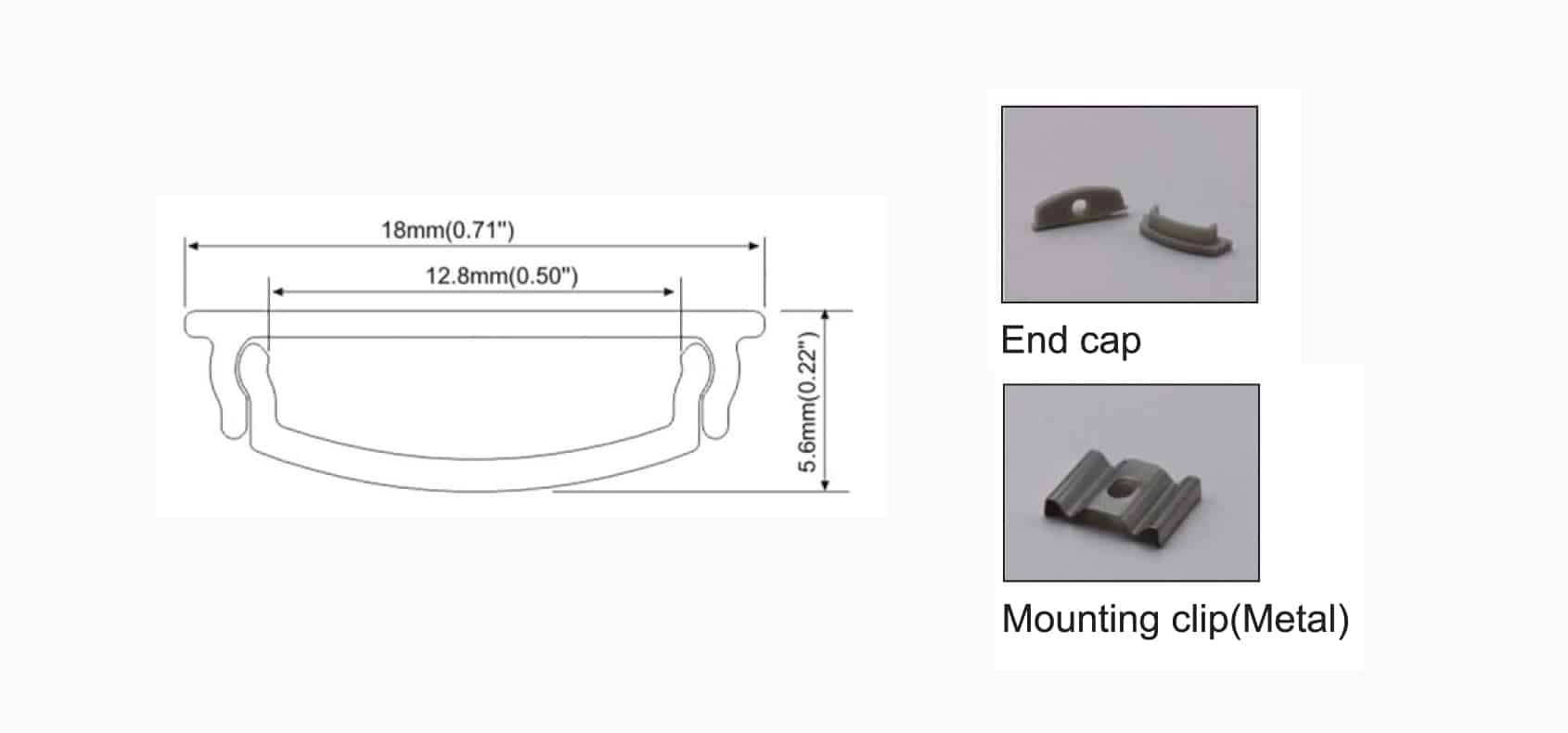

Slim Cross-Section & Discreet Profile With dimensions of 18 mm width × 5.6 mm depth, RHEALP114 offers a minimalist footprint that integrates effortlessly into cabinetry, grooves, coves, or recesses. Its slender profile makes it ideal for accent lines, under-cupboard lighting, shelves, or display lighting in residential and commercial settings. Long Continuous Runs (Up to 3 m) The profile is available in maximum continuous lengths of 3 meters, enabling long unbroken linear lighting runs. This minimizes joint visibility and simplifies wiring logistics perfect for corridors, feature walls, ceiling cove lines, and backlit walls. Material & Finishes Constructed from extruded aluminum for structural rigidity and thermal management, the RHEALP114 comes in anodized finishes including natural aluminum, white, or black allowing seamless integration into contrasting or matching interiors. Optical Control & Diffusers This profile supports polycarbonate (PC) diffused covers, which evenly spread light to conceal individual LED dots and reduce glare. Designers may choose from clear, opal, or semi-opaque diffuser variants (depending on the available option set) to balance brightness and visual comfort. Accessories & Installation Kits Included accessory options allow end caps (with or without hole for wiring), and metal mounting clips. These support recessed, surface, or flush mounting configurations. The modular set allows quick installation, servicing, and alignment in linear layouts. Thermal Performance & LED Reliability Because the aluminum body acts as a heat sink, the RHEALP114 helps maintain optimal LED operating temperatures preserving lumen output, color stability, and lifespan. This is essential in modern high-output or tightly spaced installations. Flexible Application Scenarios Use RHEALP114 for ambient indirect lighting, under-cabinet illumination, wall accent strips, cove cornices, signage backlighting, shelf lighting, glazed partitions, ceiling recesses, and more. It adapts to both low-key accent lighting and vibrant, attention-grabbing luminous lines.| Material | Extruded aluminum |
| Dimension | 1000×18 mmx5.6 mm (L*W*H) |
| Maximum continuous length | 3 Meters |
| Finishes available | Anodized natural aluminum, white, black |
| Diffuser type | Polycarbonate (opal / semi-opal / clear) |
| Accessories | End caps (with/without hole), metal mounting clips |
| Mounting methods | Flush, recessed, surface |
The price is quoted on an Ex-Works (China) basis. Please hold off on making any payment at this time. A pro forma invoice covering the fixtures, shipping, and bank charges will be issued within one to two business days. Please note that customs duty is not included in the pro forma invoice
Kindly specify the items and quantities you’re interested in, along with your complete shipping address, and we will promptly provide you with a detailed quote.
