Key Benefits at a Glance

• High Lumens, Low Energy: Over 90 lm/W efficacy ensures bright, energy-efficient illumination.

• True Color Rendering: CRI 90+ highlights interior finishes with premium accuracy, replicating natural light (rhealedlinear.co.uk).

• Wide Color Temperature Range: Choose from 1800–6500 K to support a range of moods—from cozy warm glow to crisp daylight.

• Flexible & Durable: Cuttable and bendable, the strip adapts to curved, straight, or concealed installations.

• Weather-Ready: Available in IP20–IP68 ratings, it fits dry interior coves or wet outdoor soffits alike (rhealedlinear.com, glowbackledstore.com).

 Why Professionals Prefer It

Designers and lighting planners turn to high-density LED strips when smooth, continuous, shadow-free light is essential. These strips outperform standard density options (30–60 LEDs/m) by producing seamless washes ideal for upscale finishes and bespoke installations (rhealedlinear.com).

Installation & Versatility

• Optimized Power Supply: Operates at 24 VDC using UL-listed drivers for safe power distribution.

• Thermal Management Ready: Works seamlessly with aluminum channels to maximize longevity and prevent hot spots (larsonelectronics.com, glowbackledstore.com).

• Fully Customizable: Available in different LED densities (112, 182, 238, 266, 364, 490 LED/m) and power options (7.2–23 W/m), enabling designers to match brightness and energy use to the project (rhealedlinear.com).

Design Applications

• Concealed cove perimeter lighting elevates premium finishes with a seamless light wash.

• Under-cabinet task lighting in kitchens and offices enhances functionality and style.

• Display backlights and retail shelving receive accurate color representation.

• Architectural accent in hotels and showrooms becomes visually stunning.

Outdoor façade and landscaping accent lighting—with waterproof options included.

Technical Highlights

LED Technology & Performance

• SMD 2216 Chips: Highly efficient, compact LEDs providing crisp and consistent illumination across the strip length (lotusledlights.com, store.waveformlighting.com, rhealedlinear.com).

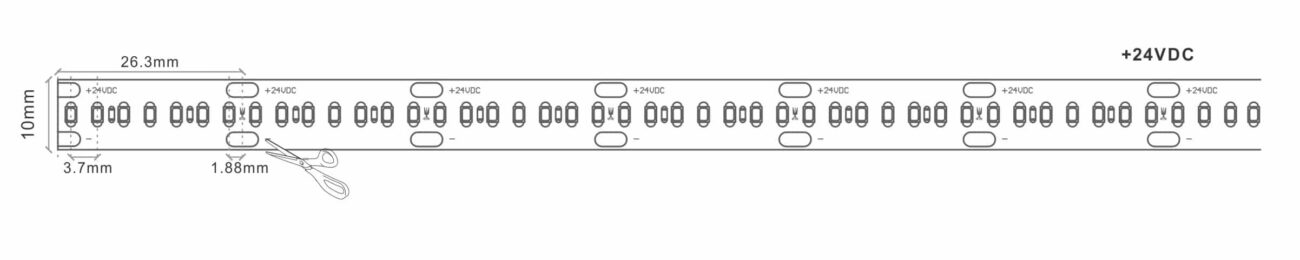

• 112 LEDs/m Density: Creates seamless light without visible dots—perfect for accent coves and feature walls .

• 7.2 W/m Power Draw: Balanced for brightness and efficiency—generates approx. 90–94 lm/W depending on CCT (rhealedlinear.com).

• Wide CCT Range: From ultra-warm 1800 K to daylight 6500 K, covering all design needs.

• High CRI 90+: Authentic rendering of materials and finishes, ideal for hospitality and high-end residential design (rhealedlinear.com, flexfireleds.com).

 Durability & Flexibility

• IP20 to IP68: Dry or wet environment compatibility—from recessed interior niches to external landscaping features (rhealedlinear.com).

• Flexible PCB: Simple installation around curves, edges, or behind trims.

 Electrical & Thermal Design

• 24 VDC Operation: Ensures safer voltage drop over long runs; compatible with standard UL-listed drivers.

• Thermal Efficiency: Smooth integration with aluminum profiles ensures optimal heat dissipation (shine.lighting, armacostlighting.com).
